Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.325
3D Adjustable Hinges

Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.325

HAFELE

Download Product Files

Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.325 by Hafele — a high-quality and adjustable hinge solution for your doors.

Properties

Product Code: 924.17.325
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
High durability

Product Attribute Symbols

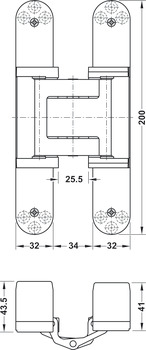

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • 924.17.325_Safety notes
  • ISO_9001_ENG
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

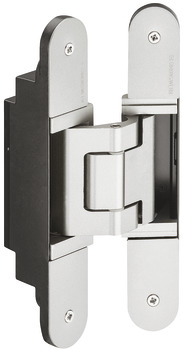

The Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.325 by Hafele represents a refined fusion of quality and functionality. This hinge ensures smooth opening and closing of doors while providing an aesthetic appearance. Made from durable steel, aluminum, and zinc alloy, it offers long-lasting performance.

Designed for both DIN left and DIN right-hand use, it features a 180-degree opening angle and is suitable for door thicknesses of 40 mm and above, capable of supporting door weights up to 100 kg. Additionally, it is equipped with adjustable features that facilitate easy installation.



The Simonswerk TECTUS TE 540 3D A8 hinge is an excellent choice for those seeking both aesthetics and functionality in their doors. Its durability and adjustable features ensure a seamless experience for years to come.
