Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.638
3D Adjustable Hinges

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.638

HAFELE

Drawing Files Technical Documents

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.638 by Hafele — Ensures smooth opening and closing of doors.

Properties

Product Code: 927.91.638
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 3
Height (cm): 16
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • 927.91.638_Safety notes
  • ISO_27001_ENG
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

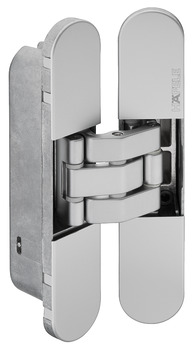

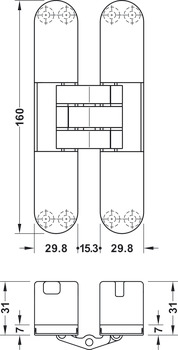

The Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.638 by Hafele represents a refined fusion of quality and functionality. With its rounded flange shape and 29.8 mm width, it offers an aesthetic look while being made from zinc alloy for enhanced durability. The 160 mm flange height guarantees strength and longevity.

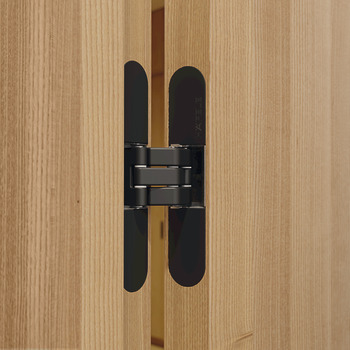

Moreover, designed in the K7080 model series, this hinge is suitable for wooden frames and works perfectly with flush wooden interior doors. It can support a maximum door weight of 80 kg with 2 hinges and 100 kg with 3 hinges. With a 180° opening angle, it provides a wide range of motion, and the door thickness must be at least 40 mm. The adjustment features include side adjustment of -2/+3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm, making it user-friendly.



This hinge by Hafele combines aesthetics and durability, making it an excellent choice for your doors. Its quality materials and adjustable features ensure long-lasting use.
