Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.922
3D Adjustable Hinges

Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.922

HAFELE

Download Product Files

Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.922 by Hafele — Provides a secure and aesthetic solution for your doors.

Properties

Product Code: 924.18.922
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
Long-lasting, maintenance-free

Product Attribute Symbols

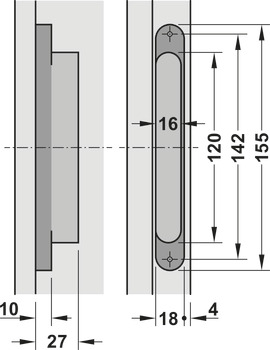

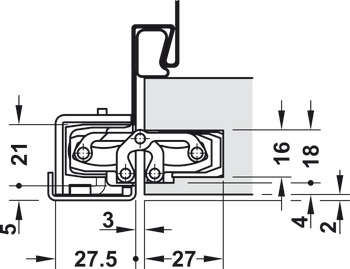

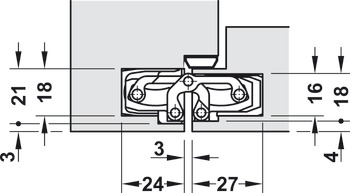

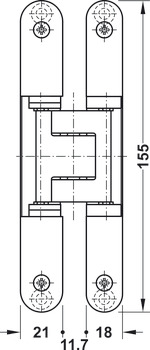

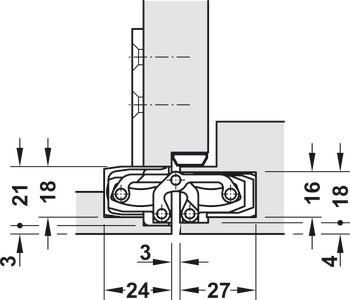

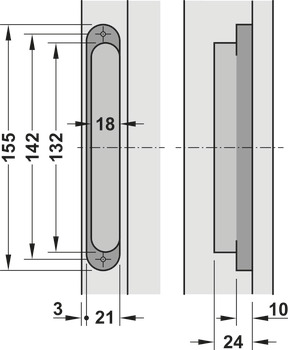

Dimensions

Length (cm): No Information
Width (cm): 2.1
Height (cm): 15.5
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • Güvenlik Notları--Security Notes
  • 924.18.922_Safety notes
  • ISO_27001_ENG
  • ISO_9001_TR
  • ISO_9001_ENG
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

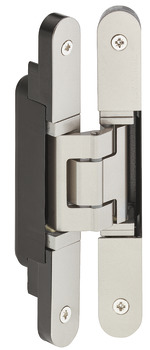

The Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.922 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange and durable materials, making it a standout choice for modern door systems. Constructed from steel, aluminum, and zinc alloy, it ensures long-lasting performance. It is compatible with wooden, steel, or aluminum frames and is ideal for flush doors.

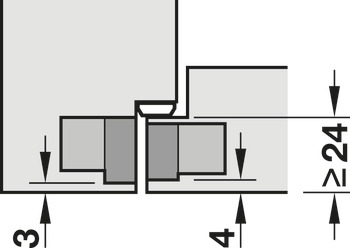

This hinge allows for an opening angle of 180 degrees, providing a wide range of motion. It can support a maximum door weight of 60 kg when using two hinges. The required door thickness is at least 25 mm, and it necessitates a router bit of 16 mm for installation. The thrust ring diameter is 30 mm, and the friction bearing design allows for maintenance-free operation.



The Simonswerk TECTUS TE 240 3D N - 924.18.922 hinge stands out for its aesthetic appeal and durability, making it a reliable choice for any door system.
