3D Adjustable Hinges

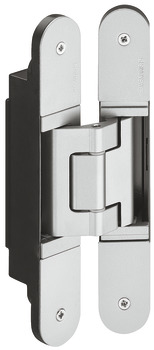

Door hinge - 924.17.223

HAFELE

Download Product ID Card

Download Product Files

Door hinge - 924.17.223 by Hafele — A reliable and adjustable hinge solution for your doors.

Properties

Product Code: 924.17.223
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
Long-lasting, compliant with EN 1935:2002 standard

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG
924.17.223_Safety notes
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

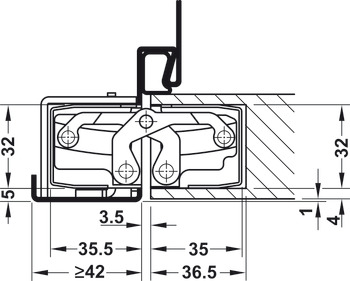

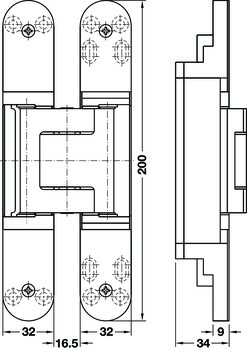

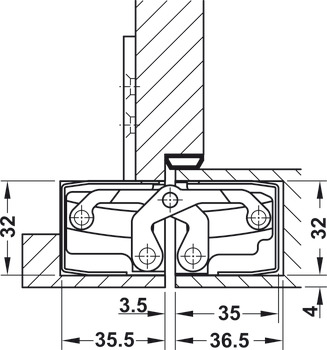

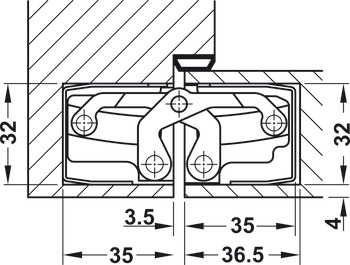

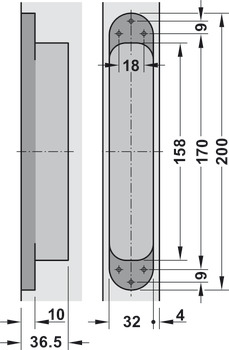

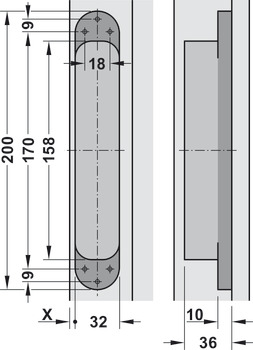

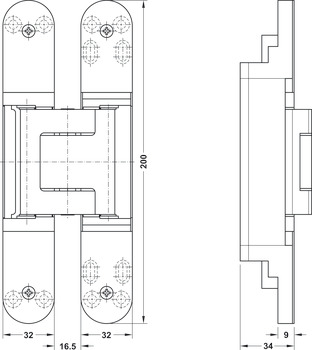

The Door hinge - 924.17.223 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use. With its rounded flange shape and 32 mm flange width, it provides an aesthetic appearance while being made from steel, aluminum, and zinc alloy. The 200 mm flange height ensures secure installation of doors.

This door hinge can support a maximum door weight of up to 120 kg. The 180° opening angle allows for smooth operation of doors. Additionally, it is suitable for doors with a thickness of 40 mm or more. The router bit diameter is 24 mm, and the thrust ring diameter is 30 mm. The hinge offers side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm for user flexibility.

The door hinge is certified in compliance with EN 1935:2002 standard. With a grade of 4|7|6|1|1|4|1|13, it offers long-lasting performance. Hafele's product is ideal for those seeking a reliable and aesthetic solution for their doors.
