Door hinge - 924.17.225

HAFELE

Download Product ID Card

Download Product Files

Door hinge - 924.17.225 by Hafele — a reliable and adjustable hinge solution for your doors.

Properties

Product Code: 924.17.225
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
No Information

Product Attribute Symbols

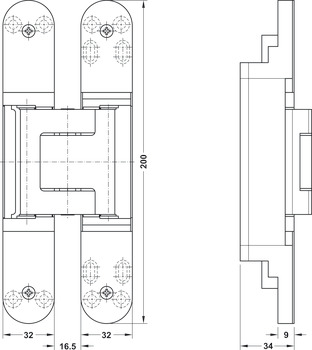

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
924.17.225_Safety notes
ISO_27001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Door hinge - 924.17.225 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right applications. With a rounded flange shape and a width of 32 mm, it offers an aesthetic appearance while being made of steel, aluminum, and zinc alloys for enhanced durability.

It can support a maximum door weight of 120 kg and provides a 180° opening angle for extensive usability. Compatible with door thicknesses of up to 40 mm, it requires a router bit of 24 mm diameter and includes a thrust ring of 30 mm. The adjustment facilities allow for side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm, making it user-friendly.

The Door hinge - 924.17.225 is certified in compliance with EN 1935:2002 standards and has a grade of 4|7|6|1|1|4|1|13, making it a reliable choice. This product by Hafele is an excellent option for those seeking a door hinge.
