3D Adjustable Hinges

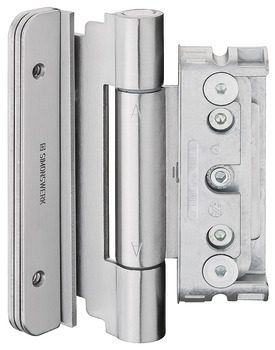

Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.880

HAFELE

Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.880 by Hafele — provides high durability and adjustability for your door systems.

Properties

Product Code: 922.13.880
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_27001_ENG
922.13.880_Safety notes
ISO_9001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

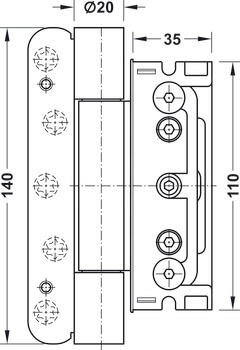

The Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.880 by Hafele represents a refined fusion of quality and functionality. This hinge is made from stainless steel and stands out with its high pull-out resistance. With a flange height of 140 mm and a flange width of 35 mm, it fits perfectly into door systems.

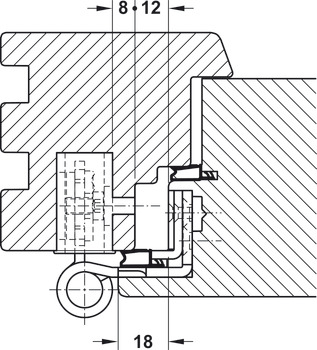

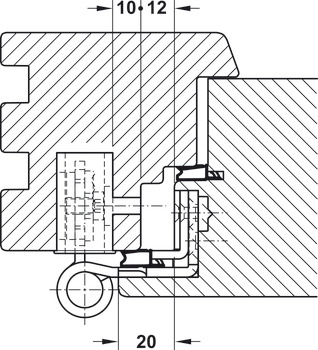

The Hafele Recessed hinge is designed for both DIN left and DIN right applications. It is ideal for front doors with an overlay seal, with an overlay distance of 18-20 mm. Its high pull-out resistance is achieved through milled-in receivers in wings and frames. Additionally, it is suitable for system testing according to DIN V EN V 1627ff standards.

This product is suitable for use on fire resistant/smoke control doors. Functional doors are always tested on the complete door element. The Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.880 is an excellent choice to enhance your door systems.
