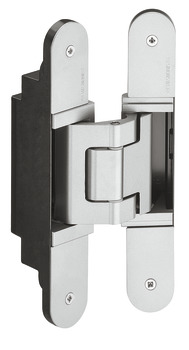

Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.323

HAFELE

Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.323 by Hafele — a perfect hinge solution for your doors.

Properties

Product Code: 924.17.323
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
924.17.323_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

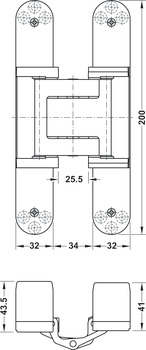

The Simonswerk TECTUS TE 540 3D A8 Concealed Door Hinge - 924.17.323 by Hafele represents a refined fusion of quality and functionality. This hinge is designed to provide both aesthetic appeal and durability. With its rounded flange shape and 32 mm flange width, it seamlessly integrates into your door design. Made from steel, aluminum, and zinc alloy, it ensures long-lasting durability.

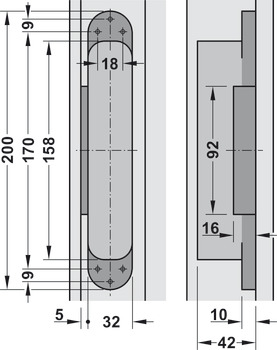

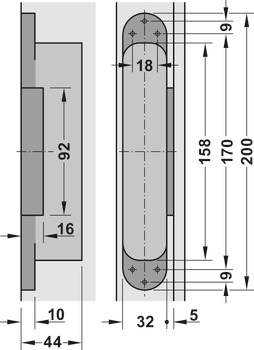

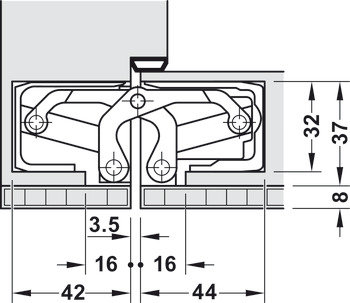

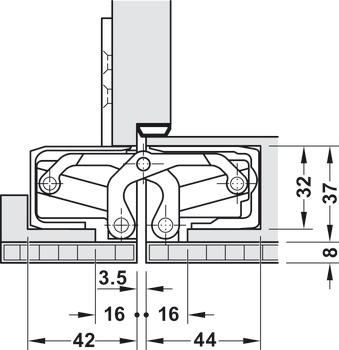

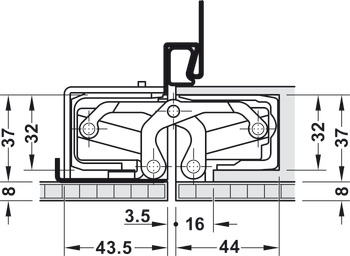

This door hinge features a flange height of 200 mm and is suitable for doors with doubling elements up to 8 mm. It can be used with wooden, steel, and aluminum frames. The maximum door weight for two hinges is 100 kg, and it offers a 180° opening angle. The door thickness must be at least 40 mm and requires a router bit of 24 mm diameter for installation.

The Simonswerk TECTUS TE 540 3D A8 hinge offers an excellent solution for your doors. Its durable construction and adjustable features make it ideal for any door.
