Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.870
3D Adjustable Hinges

Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.870

HAFELE

Download Product Files

Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.870 by Hafele — provides a secure and aesthetic solution for your door systems.

Properties

Product Code: 922.13.870
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_ENG
  • ISO_9001_TR
  • ISO_9001_ENG
  • 922.13.870_Safety notes
  • Güvenlik Notları--Security Notes
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

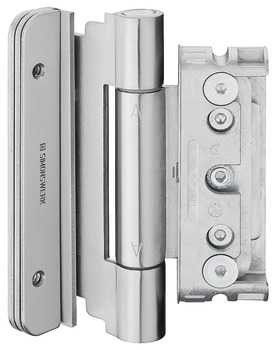

The Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.870 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge offers exceptional durability and long-lasting performance. Its unique design ensures high efficiency in door operation.

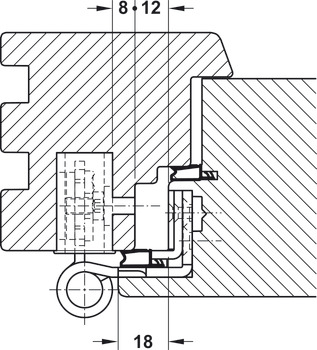

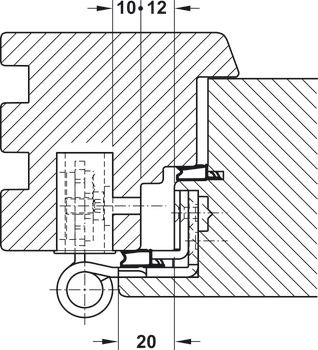

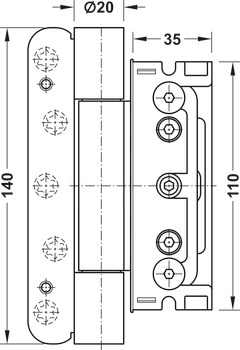

This hinge is suitable for both DIN left and DIN right applications and is compatible with front doors featuring an overlay seal. With an overlay distance of 18-20 mm, it provides ease of installation. The rounded flange shape and 35 mm flange width add to its aesthetic appeal. It can support a maximum door weight of 160 kg, making it ideal for heavy doors.



The Recessed hinge, Simonswerk BAKA protect 4040 3D FD - 922.13.870 stands out for its combination of security and aesthetics, making it an excellent choice for enhancing your door systems.
