3D Adjustable Hinges

Recessed hinge, Simonswerk BAKA protect 4030 3D FD - 922.13.860

HAFELE

Recessed hinge, Simonswerk BAKA protect 4030 3D FD - 922.13.860 by Hafele — Provides high performance and security for door installations.

Properties

Product Code: 922.13.860
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
922.13.860_Safety notes
ISO_27001_TR
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

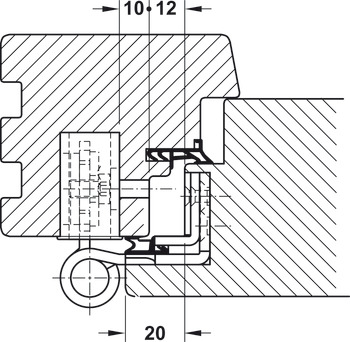

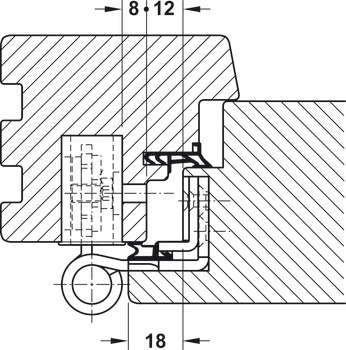

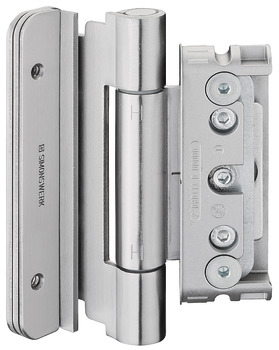

The Recessed hinge, Simonswerk BAKA protect 4030 3D FD - 922.13.860 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use, making it versatile for various door installations. It is suitable for front doors with an overlay seal, with an overlay distance of 18-20 mm. The hinge features high pull-out resistance values due to its milled-in receivers, ensuring robust performance in wooden frames.

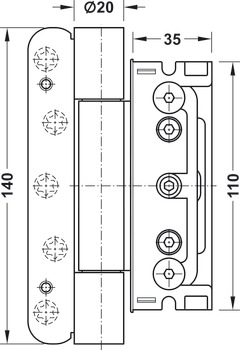

Constructed from stainless steel, this hinge has a matte finish that enhances its aesthetic appeal. The knuckle diameter is 20 mm, and it offers a knuckle length of 140 mm, providing durability and strength. With a flange height of 140 mm and 110 mm, it can accommodate different door designs. The hinge can support a maximum door weight of 160 kg, making it suitable for heavy doors. The friction bearing design is maintenance-free, allowing for hassle-free operation.

This product is also suitable for use on fire-resistant and smoke control doors, ensuring safety in various environments. Functional doors are always tested on the complete door element, providing assurance of reliability. The hinge has successfully passed durability tests with a test door weight of 160 kg. The Hafele recessed hinge is an excellent choice for those seeking security and durability in door installations.
