Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.849
3D Adjustable Hinges

Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.849

HAFELE

Download Product Files

Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.849 by Hafele — a reliable and adjustable hinge solution for door systems.

Properties

Product Code: 922.13.849
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel
Durability:
Hinge grade 10, successfully tested with a door weight of 160 kg.

Product Attribute Symbols
Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • 922.13.849_Safety notes
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

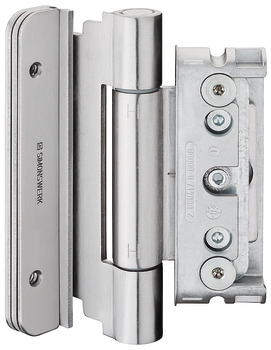

The Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.849 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for use with wooden door systems and is made from durable steel. Its high pullout resistance ensures long-lasting and reliable performance.

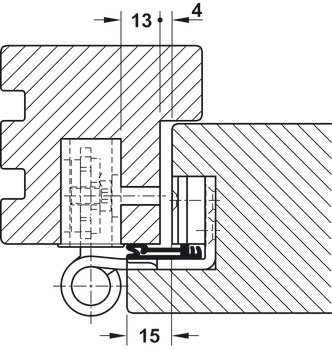

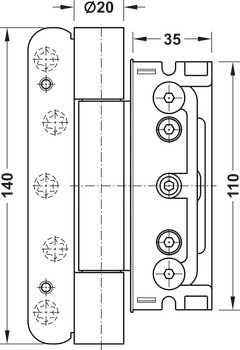

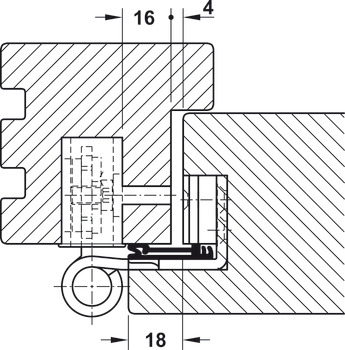

This model is suitable for both DIN left and DIN right hand usage, providing flexibility with an overlay distance of 15-18 mm. The rounded flange design features a width of 35 mm and a height of 140 mm / 110 mm. Additionally, it can support door weights up to 160 kg, thanks to its robust 20 mm knuckle diameter.



The Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.849 stands out for its high quality and durability, making it an excellent choice for those seeking reliability in their door systems.
