3D Adjustable Hinges

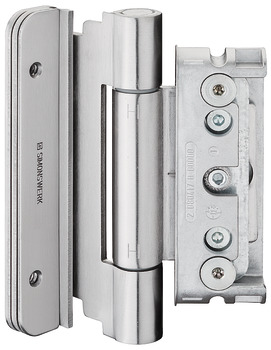

Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.839

HAFELE

Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.839 by Hafele — Provides high durability and adjustability for your doors.

Properties

Product Code: 922.13.839
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel
Durability:
Durable, supports door weight up to 160 kg.

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.13.839_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

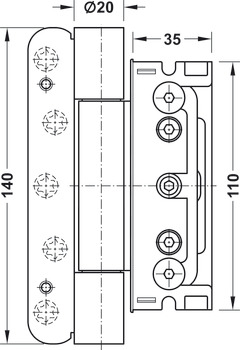

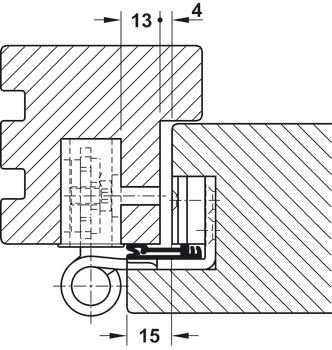

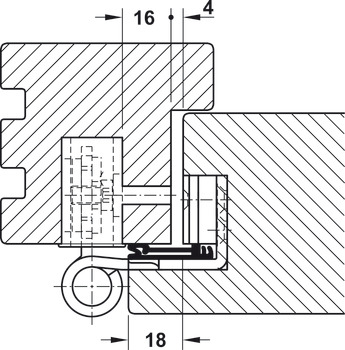

The Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.839 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right hand use, with an overlay distance of 15-18 mm, allowing flexibility in door installation. Its rounded flange shape and 35 mm flange width provide an aesthetic appeal, while the 20 mm knuckle diameter ensures a robust structure.

With flange heights of 140 mm and 110 mm, and a 10 mm radius, this hinge fits perfectly for wooden door leaves. It can support door weights up to 160 kg, thanks to the groove-mounted receivers in the door and frame, which offer high pullout resistance values. Additionally, it features maintenance-free friction bearings for long-lasting use.

The Recessed hinge, Simonswerk BAKA protect 4010 3D FD - 922.13.839 offers high performance and durability for your doors. Its adjustability features ensure ease of installation and guarantee smooth operation of the doors.
