3D Adjustable Hinges

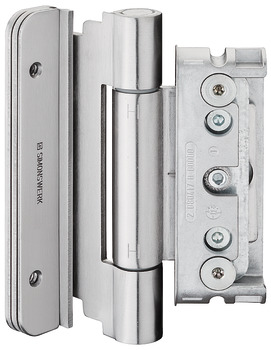

Recessed hinge, Simonswerk BAKA protect 4010 3D - 922.13.829

HAFELE

Recessed hinge, Simonswerk BAKA protect 4010 3D - 922.13.829 by Hafele — Ensures secure and smooth operation of doors.

Properties

Product Code: 922.13.829
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel
Durability:
High durability, successfully passed a test with a door weight of 160 kg.

Product Attribute Symbols

Dimensions

Length (cm): 14
Width (cm): 3.5
Height (cm): 14
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

922.13.829_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

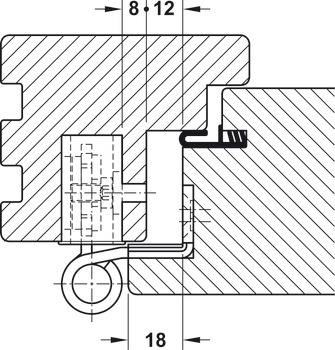

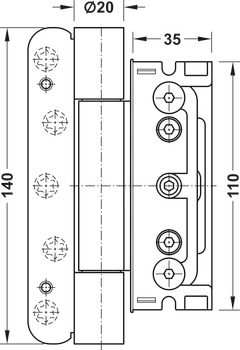

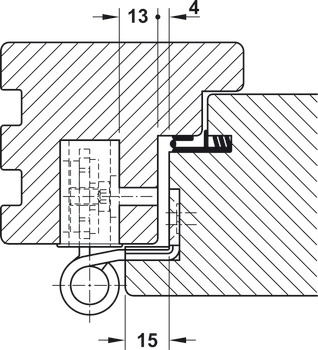

The Recessed hinge, Simonswerk BAKA protect 4010 3D - 922.13.829 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use. With an overlay distance of 15-18 mm, rounded flange shape, and a flange width of 35 mm, it stands out in performance. A knuckle diameter of 20 mm and flange height options of 140 mm and 110 mm ensure compatibility with various door applications.

High pullout resistance values are achieved through the groove-mounted receivers in the door and frame. Suitable for wooden frames, this hinge is designed for wooden door leaves. The maximum door weight for two hinges is 160 kg, providing a robust solution for heavy doors. The 140 mm knuckle length adds to its reliability.

The Recessed hinge, Simonswerk BAKA protect 4010 3D - 922.13.829 is an excellent choice for those seeking a secure and durable door opening solution. Its superior craftsmanship and material quality ensure long-lasting use.
