Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.034
3D Adjustable Hinges

Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.034

HAFELE

Drawing Files Technical Documents

Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.034 by Hafele — Provides a seamless opening and closing experience while enhancing aesthetics.

Properties

Product Code: 922.17.034
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy, Steel
Durability:
No Information

Product Attribute Symbols

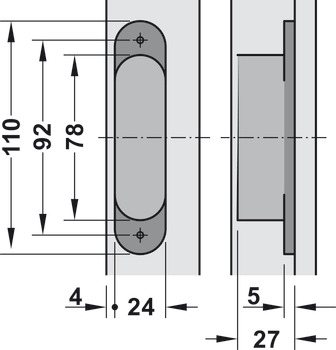

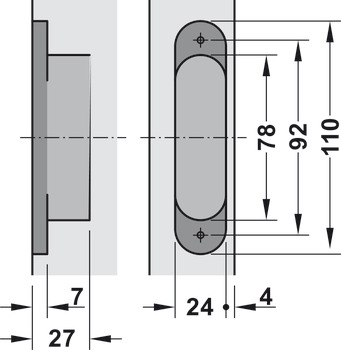

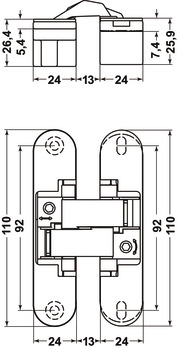

Dimensions

Length (cm): No Information
Width (cm): 2.4
Height (cm): 11
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • 922.17.034_Safety notes
  • ISO_27001_TR
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

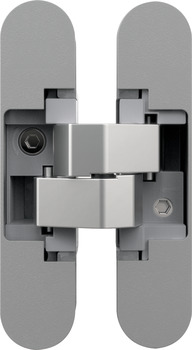

The Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.034 by Hafele represents a refined fusion of quality and functionality. The concealed hinge design ensures that the aesthetic appeal of your doors remains intact while providing excellent performance. Made from zinc alloy and steel, this product is built for durability and longevity.

With a 180-degree opening angle, it allows for full door swing, promoting ease of use. The hinge features an adjustment mechanism that enables side and height adjustments, making installation straightforward. Capable of supporting door weights up to 80 kg, it is ideal for wooden frames.



The Door Hinge, AN 180 3D stands out with its unique features and adjustable capabilities, making it a perfect choice for your door needs. Experience the quality of Hafele for a lasting and aesthetic solution.
