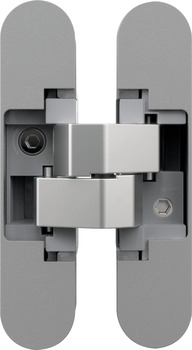

Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.033
3D Adjustable Hinges

Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.033

HAFELE

Drawing Files Technical Documents

Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.033 by Hafele — This hinge provides a seamless opening and closing experience for your doors.

Properties

Product Code: 922.17.033
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy, Steel
Durability:
No Information

Product Attribute Symbols

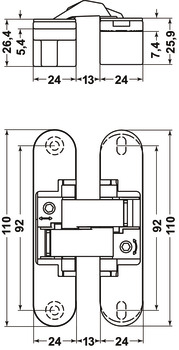

Dimensions

Length (cm): No Information
Width (cm): 2.4
Height (cm): 11
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_TR
  • ISO_27001_TR
  • ISO_9001_ENG
  • ISO_27001_ENG
  • 922.17.033_Safety notes
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Door Hinge, AN 180 3D, concealed, for flush interior doors - 922.17.033 by Hafele represents a refined fusion of quality and functionality. This hinge is ideal for those seeking both aesthetics and practicality. Its concealed design enhances the appearance of doors while improving functionality. Made from zinc alloy and steel, it ensures long-lasting durability.

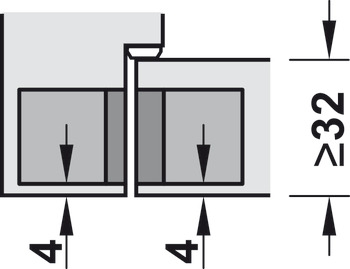

The hinge offers a 180-degree opening angle, allowing for wide access. It can support door weights of up to 80 kg, making it suitable for heavy doors. The minimum door thickness required is 32 mm. The hinge features side adjustment, height adjustment, and closing pressure adjustment, providing ease during installation.



The Door Hinge, AN 180 3D, with its concealed structure and adjustable features, offers a user-friendly experience. Its durable materials ensure longevity and provide an aesthetic appeal. This product by Hafele is an excellent choice for those in need of a reliable door hinge.
