Door hinge - 924.17.224
3D Adjustable Hinges

Door hinge - 924.17.224

HAFELE

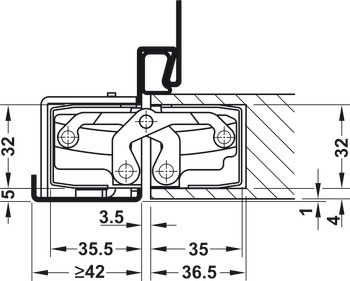

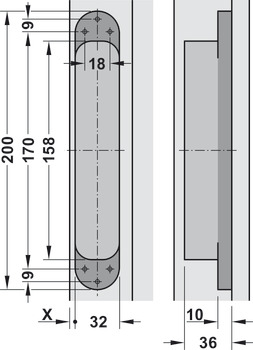

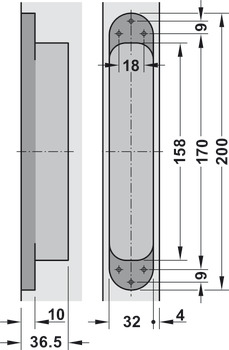

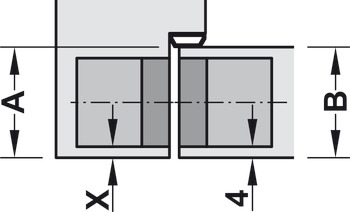

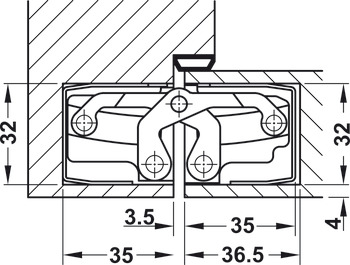

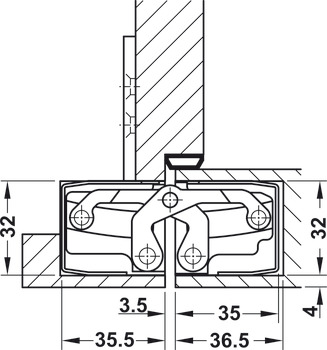

Drawing Files Technical Documents

Door hinge - 924.17.224 by Hafele — A high-quality hinge solution ensuring secure door operation.

Properties

Product Code: 924.17.224
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • ISO_27001_TR
  • ISO_9001_TR
  • 924.17.224_Safety notes
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

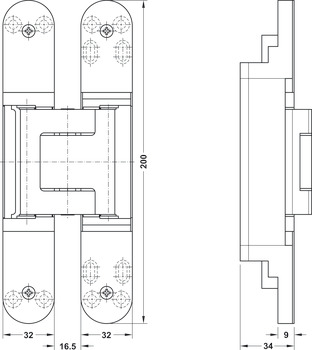

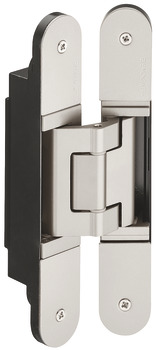

The Door hinge - 924.17.224 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, featuring a rounded flange shape that provides an aesthetic appeal. Made from steel, aluminum, and zinc alloy, it offers exceptional durability. With a flange height of 200 mm and a flange width of 32 mm, it ensures perfect compatibility for door installations.

This hinge can support a maximum door weight of 120 kg and provides a 180-degree opening angle, allowing for a wide range of motion. The door thickness must be at least 40 mm. The router bit diameter is 24 mm, and the thrust ring diameter is 30 mm. The adjustment capabilities include side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm. It is certified in compliance with EN 1935:2002 and boasts a grade of 4|7|6|1|1|4|1|13.



The Door hinge - 924.17.224 stands out with its high-quality materials and craftsmanship, providing a reliable solution for your door needs.
