Concealed Hinges

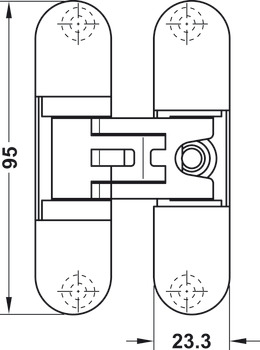

Concealed door hinge, Startec H2 - 927.91.546

HAFELE

Download Product ID Card

Download Product Files

Concealed door hinge, Startec H2 - 927.91.546 by Hafele — An ideal solution for wooden doors.

Properties

Product Code: 927.91.546
Category: Concealed Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 2.3
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR
927.91.546_Safety notes
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Concealed door hinge, Startec H2 - 927.91.546 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden doors, providing a concealed structure that enhances aesthetic appeal. Made from high-quality zinc alloy, it ensures durability and reliability.

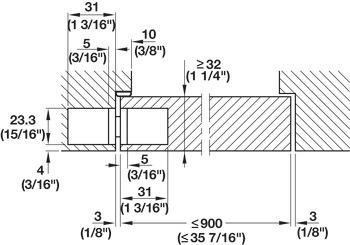

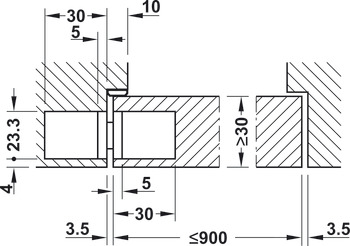

It accommodates door widths of up to 900 mm and heights of up to 2000 mm. Suitable for doors with a thickness of 32 mm, it supports a maximum weight of 45 kg with 2 hinges and 60 kg with 3 hinges. The hinge allows for a 180-degree opening angle, ensuring ease of use in both directions.

The hinge features side adjustment of -2/+3 mm, height adjustment of ±2.5 mm, and closing pressure adjustment of ±1 mm. It is certified in compliance with EN 1935:2002 standards. The product comes with a hex key for adjustment and fixing materials.

The Concealed door hinge, Startec H2 is an excellent choice for wooden doors, combining both aesthetic appeal and functionality, making it a reliable choice for any interior application.
