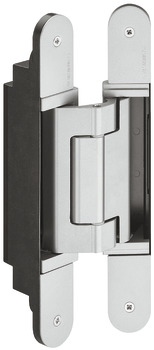

Door hinge, Simonswerk TECTUS TE 640 3D A8 - 924.17.523

HAFELE

Door hinge, Simonswerk TECTUS TE 640 3D A8 - 924.17.523 by Hafele — A high-quality hinge ensuring smooth door operation.

Properties

Product Code: 924.17.523
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 24
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
924.17.523_Safety notes
ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

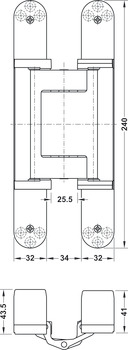

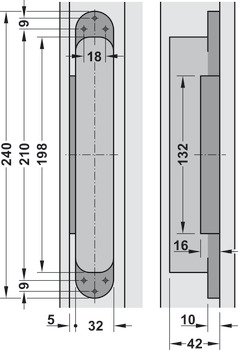

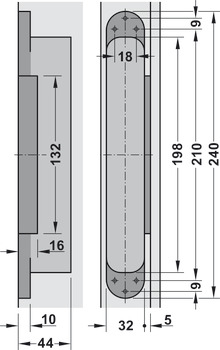

The Door hinge, Simonswerk TECTUS TE 640 3D A8 - 924.17.523 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and a flange width of 32 mm, making installation user-friendly. Constructed from steel, aluminum, and zinc alloy, it stands out with a flange height of 240 mm.

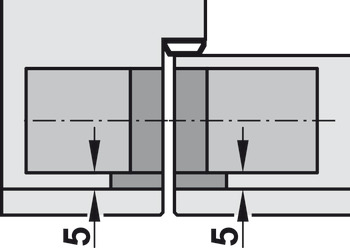

This hinge supports a maximum door weight of 160 kg, allowing for robust door applications. With an opening angle of 180 degrees, it enables doors to swing open fully. It is suitable for door thicknesses of 40 mm and above, and can be installed using a 24 mm router bit. The product offers adjustment features including ±3 mm side adjustment, ±3 mm height adjustment, and ±1 mm closing pressure adjustment, and is certified in compliance with EN 1935:2002.

The Door hinge, Simonswerk TECTUS TE 640 3D A8 - 924.17.523 combines aesthetic appeal and functionality, providing a long-lasting solution for your door needs.
