Concealed Door Hinge Startec H2 - 927.91.548

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Concealed Door Hinge Startec H2 - 927.91.548 by Hafele — It provides elegance and functionality for your doors.

Properties

Product Code: 927.91.548
Category: Concealed Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 2.3
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
927.91.548_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

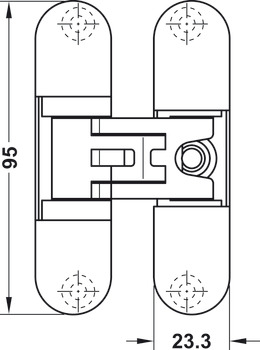

The Concealed Door Hinge Startec H2 - 927.91.548 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and a polished gold finish, adding a touch of elegance to your doors. Made from zinc alloy, it combines durability with aesthetic appeal.

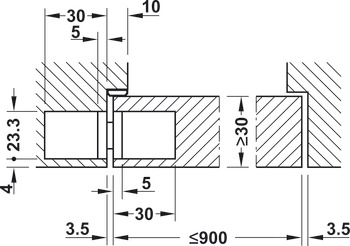

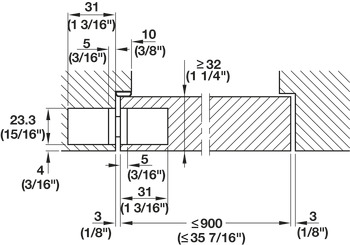

Designed for doors with a maximum width of 900 mm and a height of up to 2000 mm, this hinge supports a door thickness of 32 mm or more. It can hold up to 45 kg with two hinges and 60 kg with three hinges, making it ideal for various applications. The opening angle of 180 degrees enhances the usability of your doors.

The Concealed Door Hinge Startec H2 stands out with its elegant design and high performance, making it a reliable choice for your door needs.
