Concealed door hinge, Startec H12 S - 927.91.074
Concealed Hinges

Concealed door hinge, Startec H12 S - 927.91.074

HAFELE

Drawing Files Technical Documents

Concealed door hinge, Startec H12 S - 927.91.074 by Hafele — A robust and aesthetic hinge solution for your doors.

Properties

Product Code: 927.91.074
Category: Concealed Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 2.4
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_27001_TR
  • ISO_27001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • 927.91.074_Safety notes
  • ISO_9001_ENG
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

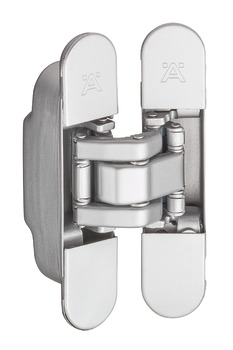

The Concealed door hinge, Startec H12 S - 927.91.074 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden frames and is suitable for use in interior doors. Made from durable steel, this hinge offers a sleek and modern appearance.

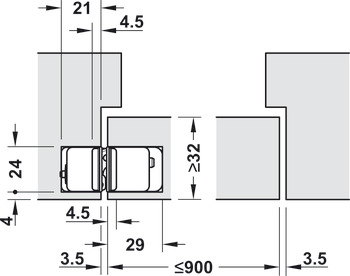

It accommodates door widths of up to 900 mm and heights of up to 2100 mm. Capable of supporting door weights of 60 kg, it provides a wide range of motion with a 180° opening angle. Additionally, the adjustment mechanism allows for side, height, and closing pressure adjustments.



The Startec H12 S concealed door hinge stands out with its aesthetic appeal and high durability, making it an ideal choice for your doors.
