Concealed Hinges

Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.429

HAFELE

Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.429 by Hafele — A high-quality hinge that combines durability and design for your doors.

Properties

Product Code: 924.17.429
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 24
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.17.429_Safety notes
ISO_9001_ENG
ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.429 by Hafele represents a refined fusion of quality and functionality. This hinge stands out with its modern design and robust construction. Made from steel, aluminum, and zinc alloys, it ensures high durability while supporting doors weighing up to 200 kg and providing a 180-degree opening angle for ease of use.

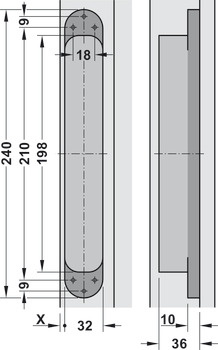

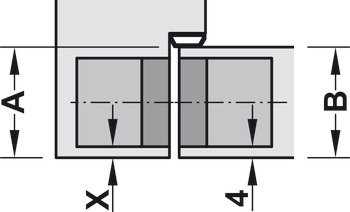

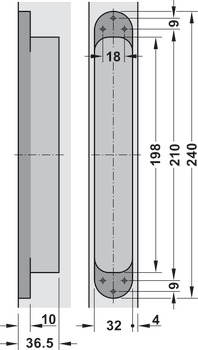

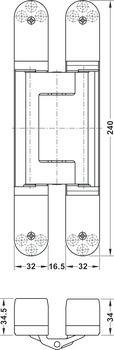

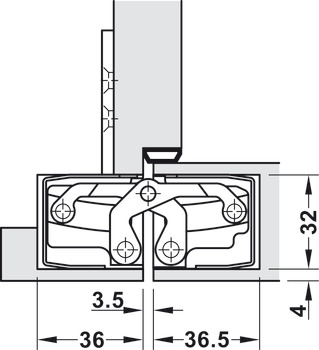

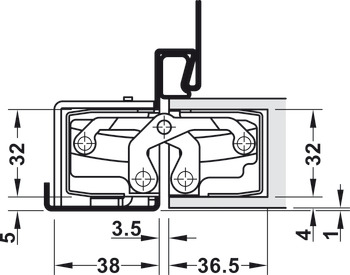

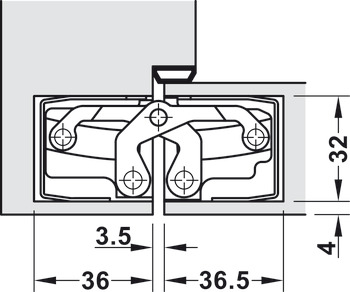

The TE 640 3D model features adjustable settings that allow for flexibility in door installation. Side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm cater to user needs. Additionally, it is suitable for doors with a thickness of 40 mm and can be installed using a 24 mm router bit. The hinge's rounded flange shape and 32 mm flange width offer an aesthetic appearance while providing strong support with a flange height of 240 mm.

The Simonswerk TECTUS TE 640 3D door hinge combines aesthetics and durability, providing a modern solution for your door systems. Experience the quality of Hafele for a secure usage.
