Concealed Hinges

Door hinge, Simonswerk TECTUS TE 645 3D, For flush doors up to 300 kg - 924.19.004

HAFELE

Door hinge, Simonswerk TECTUS TE 645 3D, For flush doors up to 300 kg - 924.19.004 by Hafele — A robust and aesthetic solution for your doors.

Properties

Product Code: 924.19.004
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 28
Width (cm): 3.6
Height (cm): 28
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
924.19.004_Safety notes
ISO_27001_ENG
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Door hinge, Simonswerk TECTUS TE 645 3D, For flush doors up to 300 kg - 924.19.004 by Hafele represents a refined fusion of quality and functionality. This hinge is designed to support doors weighing up to 300 kg, making it ideal for modern applications. Crafted from high-quality steel and aluminum, it features a sleek design that enhances the aesthetic appeal of any door.

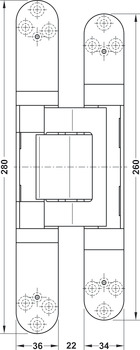

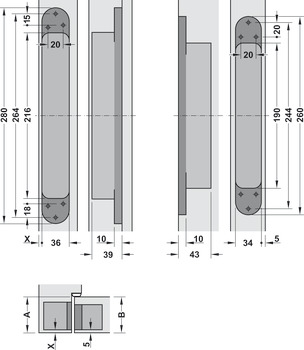

Designed for both DIN left and DIN right-hand use, the rounded flange shape adds to its visual appeal while ensuring durability. With flange widths of 36 mm and 34 mm, it provides a robust support system. The hinge is available in two flange heights of 280 mm and 260 mm, allowing it to fit various door sizes seamlessly. It is suitable for wooden, steel, or aluminum frames, ensuring versatility in installation.

The Door hinge, Simonswerk TECTUS TE 645 3D stands out due to its ease of installation and high load-bearing capacity. This product is an ideal choice for both residential and commercial applications.
