Concealed Hinges

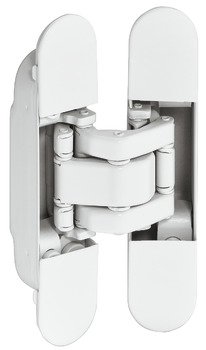

Concealed door hinge, Startec H12 S - 927.91.077

HAFELE

Concealed door hinge, Startec H12 S - 927.91.077 by Hafele — A reliable solution that maintains the aesthetic appeal of your doors.

Properties

Product Code: 927.91.077
Category: Concealed Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 2.4
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_ENG
927.91.077_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

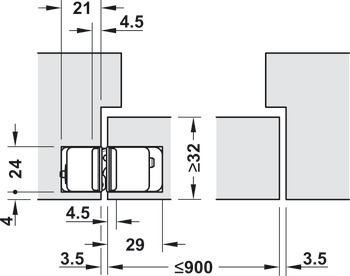

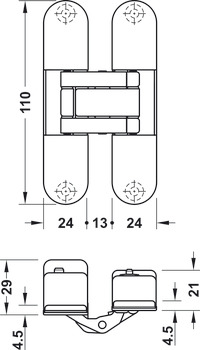

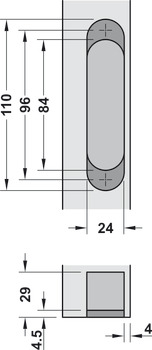

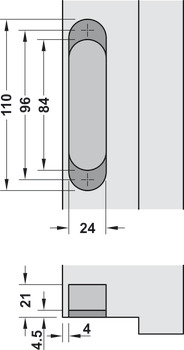

The Concealed door hinge, Startec H12 S - 927.91.077 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange design and is made from durable steel. It can accommodate door widths of up to 900 mm and supports a maximum weight of 60 kg. With an opening angle of 180°, it allows doors to open fully.

This concealed hinge is designed for wooden frames and flush wooden interior doors. It is compatible with door heights of up to 2100 mm and is suitable for doors with a thickness of 32 mm or more. The adjustment features include side adjustment of ±1 mm, height adjustment of 2.5 mm, and closing pressure adjustment of ±1.5 mm, ensuring ease of installation and operation.

The Concealed door hinge, Startec H12 S stands out for its aesthetic appeal and functional benefits, making it a reliable choice for enhancing your doors.
