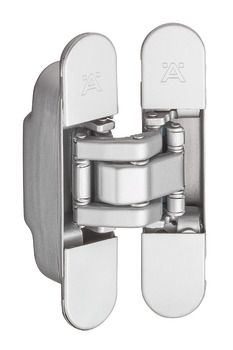

Concealed door hinge, Startec H12 S - 927.91.076

HAFELE

Concealed door hinge, Startec H12 S - 927.91.076 by Hafele — Provides a sleek and hidden solution for door installations.

Properties

Product Code: 927.91.076
Category: Concealed Hinges

Material Properties

Used Material:
Steel
Durability:
No Information

Product Attribute Symbols

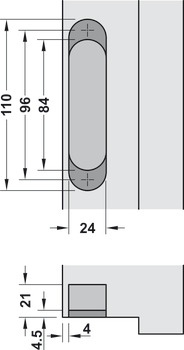

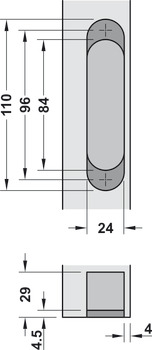

Dimensions

Length (cm): No Information
Width (cm): 2.4
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
927.91.076_Safety notes
ISO_9001_ENG
ISO_27001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

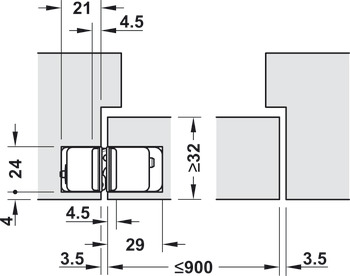

The Concealed door hinge, Startec H12 S - 927.91.076 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange design and is constructed from durable steel material. Suitable for door widths up to 900 mm, it can support door weights of up to 60 kg, allowing for smooth operation with a 180-degree opening angle.

Ideal for doors with a maximum height of 2100 mm and a thickness of 32 mm or more, this concealed hinge offers user-friendly adjustments with side adjustment of ±1 mm, height adjustment of 2.5 mm, and closing pressure adjustment of ±1.5 mm. Additional finishes are available upon request, providing flexibility in design.

The Concealed Door Hinge Startec H12 S stands out for its aesthetic appeal and functional efficiency, making it an excellent choice for modern door solutions.
