Concealed Door Hinge Startec H12 - 927.91.348

HAFELE

Download Product ID Card

Drawing Files Technical Documents

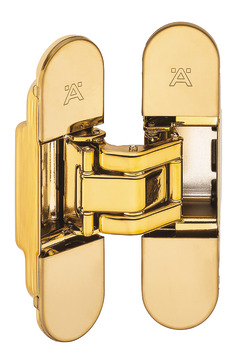

Concealed Door Hinge Startec H12 - 927.91.348 by Hafele — A perfect solution for wooden interior doors.

Properties

Product Code: 927.91.348
Category: Concealed Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 90
Height (cm): 0.2
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
927.91.348_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

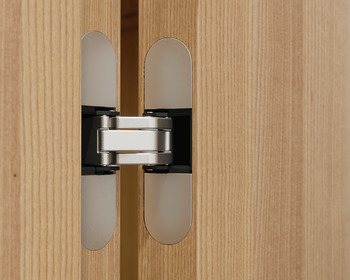

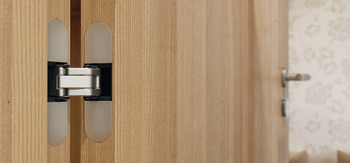

The Concealed Door Hinge Startec H12 - 927.91.348 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden frames, providing an aesthetic appearance. Made from durable steel, it supports door weights up to 60 kg. With a 180-degree opening capability, it offers ease of use.

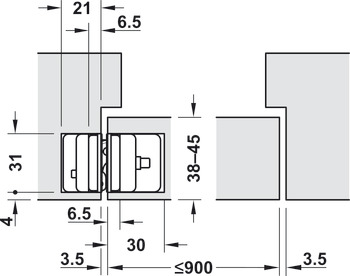

The maximum door height is 210 cm, and the door thickness ranges from 38 to 45 mm. The hinge features adjustment options including side adjustment ±1 mm, height adjustment ±3 mm, and closing pressure adjustment ±1 mm, ensuring perfect alignment after installation. Additionally, the necessary fixing materials and an adjustment hex key are included with the product.

The Concealed Door Hinge Startec H12 stands out for its blend of aesthetics and functionality, making it an excellent choice for those seeking quality in their door solutions.
