3D Adjustable Hinges

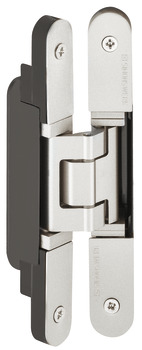

Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.904

HAFELE

Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.904 by Hafele — A perfect solution for door installation with aesthetic and functional benefits.

Properties

Product Code: 924.18.904
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
Durable and long-lasting

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 2.1
Height (cm): 15.5
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_27001_TR
924.18.904_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

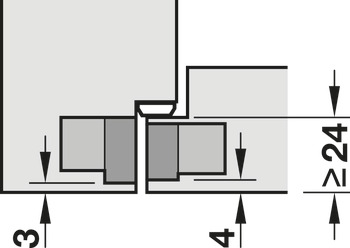

The Concealed door hinge, Simonswerk TECTUS TE 240 3D N - 924.18.904 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and offers various mounting options. Made from steel, aluminum, and zinc alloy, it ensures durability and reliability. It supports door weights of up to 60 kg and allows for an opening angle of 180°. Additionally, it is suitable for doors with a thickness of 25 mm or more.

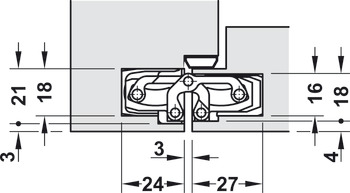

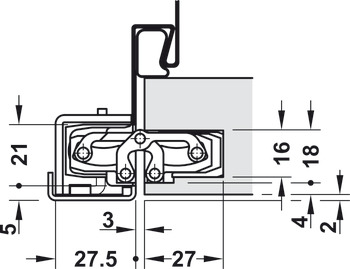

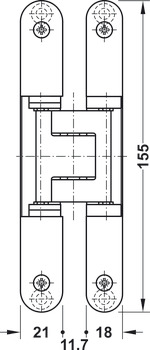

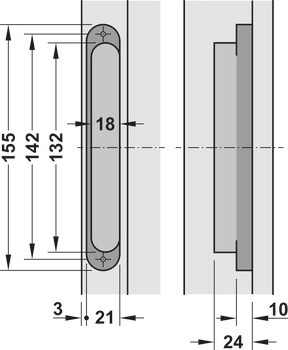

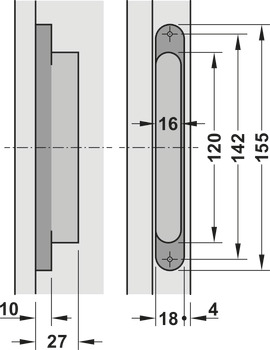

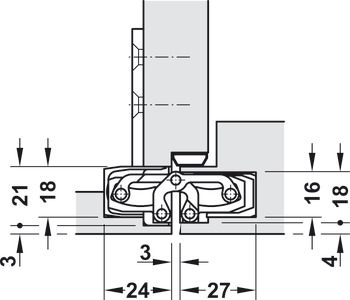

The hinge is designed for both DIN left and DIN right-hand use, making it versatile for different installations. With a flange height of 155 mm and a flange width of 21 mm / 18 mm, it adapts well to various door types. The maintenance-free friction bearings enhance its longevity, while the side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1.5 mm provide flexibility for precise installation.

This concealed door hinge combines aesthetic appeal with practical functionality, making it a standout choice for any door installation.
