3D Adjustable Hinges

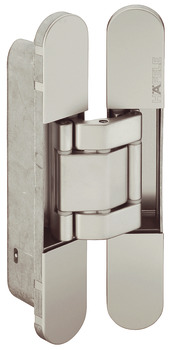

Concealed door hinge for flush interior doors - 927.91.826

HAFELE

Concealed door hinge for flush interior doors - 927.91.826 by Hafele — a reliable and aesthetic hinge solution for your doors.

Properties

Product Code: 927.91.826
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 20
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

927.91.826_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

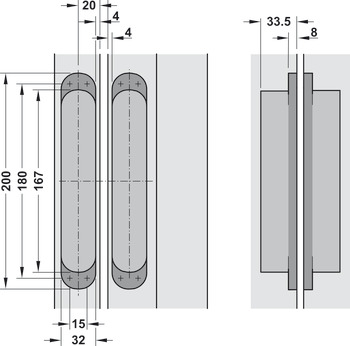

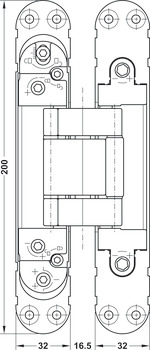

The Concealed door hinge for flush interior doors - 927.91.826 by Hafele represents a refined fusion of quality and functionality. With its rounded flange shape and 32 mm width, it provides an aesthetic appearance while being made of zinc alloy for enhanced durability. This hinge is designed for wooden frames and is ideal for flush wooden interior doors.

The maximum door weight is 120 kg for 2 hinges and 140 kg for 3 hinges, offering a wide range of applications with a 180° opening angle. The door thickness must be at least 40 mm, and the adjustment features include side adjustment of -2/+3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm, ensuring a user-friendly experience.

The concealed door hinge for flush interior doors - 927.91.826 stands out with its aesthetic design and high durability, making it an excellent choice for your doors.
