3D Adjustable Hinges

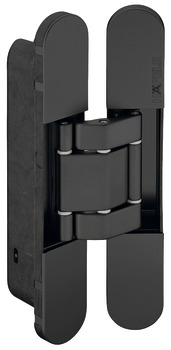

Concealed door hinge for flush interior doors - 927.91.823

HAFELE

Concealed door hinge for flush interior doors - 927.91.823 by Hafele — Ensures smooth operation of doors while providing an aesthetic look.

Properties

Product Code: 927.91.823
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 20
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_27001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_9001_TR
927.91.823_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

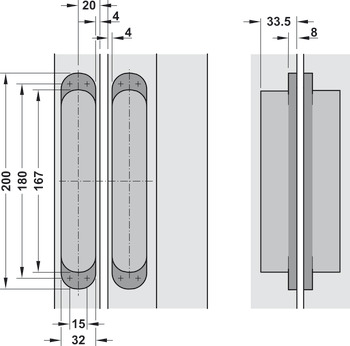

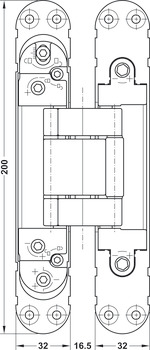

The Concealed door hinge for flush interior doors - 927.91.823 by Hafele represents a refined fusion of quality and functionality. With its rounded flange design and 32 mm width, it offers an aesthetic appearance while providing durability with its zinc alloy material. This hinge guarantees secure operation for doors weighing up to 120 kg with two hinges and 140 kg with three hinges.

It allows an opening angle of 180 degrees, providing a wide range of motion for the doors. The minimum door thickness required is 40 mm. It also offers user-friendly adjustment options with side adjustment of -2/+3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm.

This concealed door hinge stands out with its aesthetic design and high durability, making it an ideal choice for ensuring smooth door operation while enhancing the overall look of your interior.
