Concealed Hinges

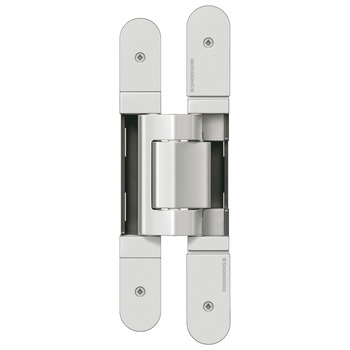

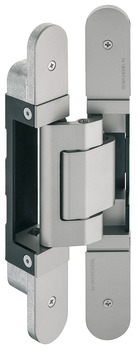

Door hinge, Simonswerk TECTUS TE 645 3D, For flush doors up to 300 kg - 924.19.000

HAFELE

Door hinge, Simonswerk TECTUS TE 645 3D, For flush doors up to 300 kg - 924.19.000 by Hafele — Provides secure and aesthetic door operation.

Properties

Product Code: 924.19.000
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium
Durability:
High durability

Product Attribute Symbols

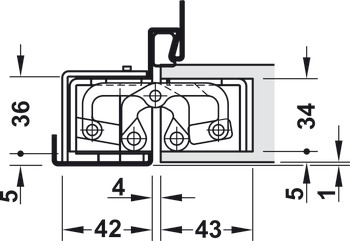

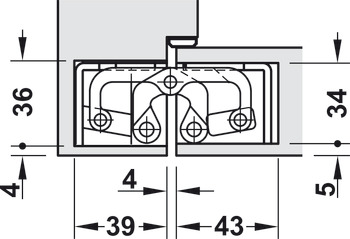

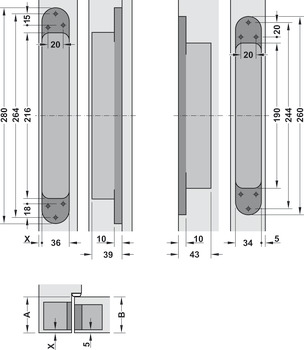

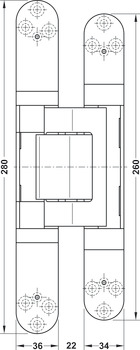

Dimensions

Length (cm): 28
Width (cm): 3.6
Height (cm): 28
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Door hinge, Simonswerk TECTUS TE 645 3D, For flush doors up to 300 kg - 924.19.000 by Hafele represents a refined fusion of quality and functionality. This hinge stands out with its modern design and durable materials. The use of steel and aluminum ensures longevity, while the ability to open up to 180 degrees offers ease of use.

This door hinge is suitable for both DIN left and DIN right applications and can support door weights of up to 300 kg, making it ideal for heavy doors. Its rounded flange shape provides an aesthetic appearance, while the adjustable features allow for easy installation. Height and side adjustments provide flexibility during door mounting.

This hinge is certified in compliance with EN 1935:2002 standard, enhancing its reliability and quality. Additionally, the hinge features a closing pressure adjustment to ensure proper closing of the door in the closed position. Hafele's product is preferred in architectural projects for its combination of aesthetics and functionality.
