Concealed Hinges

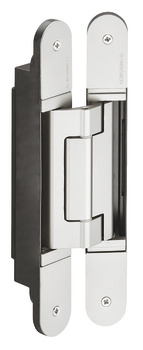

Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.425

HAFELE

Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.425 by Hafele — a reliable and aesthetic hinge solution for your doors.

Properties

Product Code: 924.17.425
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 24
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_ENG
924.17.425_Safety notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.425 by Hafele represents a refined fusion of quality and functionality. This hinge features a sleek design and is made from high-quality materials including steel, aluminum, and zinc alloy. These materials not only ensure durability but also allow the hinge to support heavy door weights effectively.

Capable of supporting doors weighing up to 200 kg, this hinge offers a 180-degree opening angle, providing ample access. The minimum door thickness required is 40 mm. It is designed for both DIN left and DIN right installations, making it versatile and easy to mount. Additionally, the hinge includes adjustable features for side, height, and closing pressure, allowing for precise installation.

This door hinge is an excellent choice for those seeking both aesthetic appeal and functionality. Hafele's product stands out as a reliable solution for heavy-duty applications.
