Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.833
3D Adjustable Hinges

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.833

HAFELE

Drawing Files Technical Documents

Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.833 by Hafele — A secure and aesthetic hinge solution for your doors.

Properties

Product Code: 927.91.833
Category: 3D Adjustable Hinges

Material Properties

Used Material:
Zinc alloy
Durability:
No Information

Product Attribute Symbols
Dimensions

Length (cm): No Information
Width (cm): 3
Height (cm): 16
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents
  • ISO_9001_ENG
  • Güvenlik Notları--Security Notes
  • ISO_9001_TR
  • 927.91.833_Safety notes
Images
Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

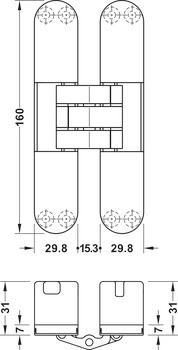

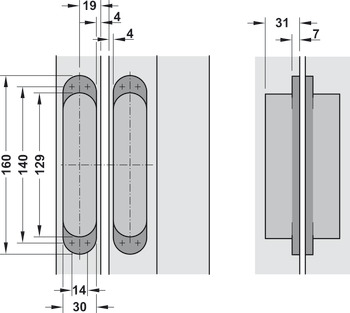

The Door hinge, concealed, for flush interior doors up to 80/100 kg - 927.91.833 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange design and is made from durable zinc alloy. With a flange height of 160 mm and a flange width of 29.8 mm, it provides an aesthetic look for door installations. It can support up to 80 kg with two hinges and up to 100 kg with three hinges.

With an opening angle of 180 degrees, the hinge allows for easy door operation. It is suitable for door thicknesses of 40 mm and above. The side adjustment of -2/+3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm offer user-friendly adjustment options. These features ensure that all necessary adjustments can be easily made for optimal door performance after installation.



This door hinge combines aesthetics and functionality, ensuring that your doors are both secure and stylish. Experience long-lasting quality with Hafele.
