Architectural Door Hinges

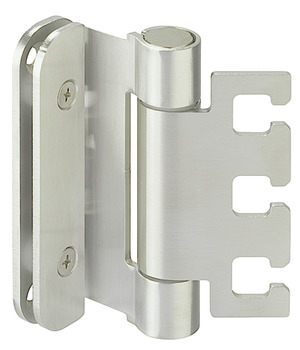

Architectural door hinge, Startec DHX 3100 - 924.25.903

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Architectural door hinge, Startec DHX 3100 - 924.25.903 by Hafele — Ensures secure and smooth operation of doors.

Properties

Product Code: 924.25.903
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 10
Width (cm): 3
Height (cm): 10.3
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_9001_TR
ISO_27001_TR
924.25.903_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Architectural door hinge, Startec DHX 3100 - 924.25.903 by Hafele represents a refined fusion of quality and functionality. This hinge is suitable for both DIN left and DIN right-hand use and features a groove for continuous wing seal. Made from high-quality stainless steel, it offers durability and longevity.

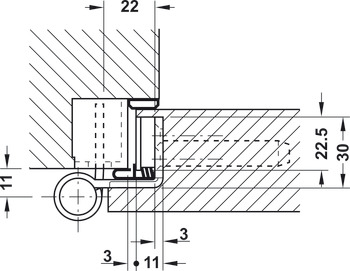

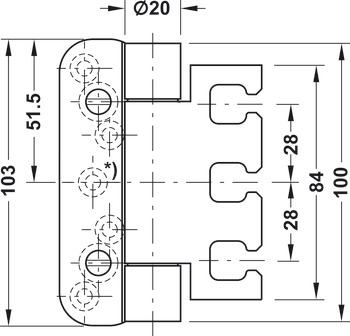

The hinge is designed with a 20 mm knuckle diameter and a knuckle length of 100 mm, ensuring stable door operation. With a flange thickness of 3 mm and heights of 103 mm and 84 mm, it provides flexibility in door installation. The 12 mm radius contributes to an aesthetically pleasing appearance, while the 10 mm pin diameter ensures a secure connection.

This hinge by Hafele not only ensures secure and smooth operation of doors but also stands out with its aesthetic appeal and durability. It is a reliable choice for architectural projects.
