Architectural Door Hinges

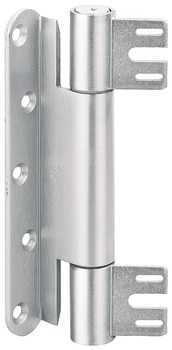

Architectural door hinge, Simonswerk VN 8938/160 - 924.15.203

HAFELE

Architectural door hinge, Simonswerk VN 8938/160 - 924.15.203 by Hafele — designed to enhance the security and aesthetics of your doors.

Properties

Product Code: 924.15.203
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
924.15.203_Safety notes
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Architectural door hinge, Simonswerk VN 8938/160 - 924.15.203 by Hafele represents a refined fusion of quality and functionality. Crafted from durable stainless steel, this hinge features a sleek matte finish and a rounded flange shape that adds an elegant touch to any door. It is designed for both DIN left and right-hand applications, making it versatile for various door systems.

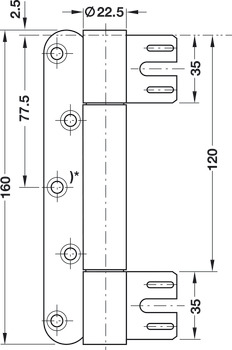

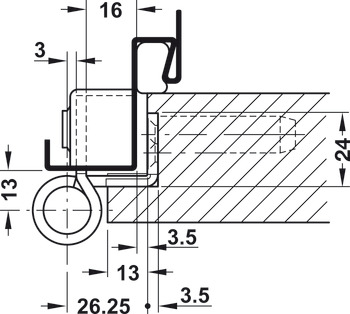

This hinge can support a maximum door weight of 160 kg, ensuring robust performance. With a knuckle diameter of 22.50 mm and a flange thickness of 3.50 mm, it provides a solid structure for reliable operation. The 160 mm knuckle length allows for smooth opening and closing, while the 10 mm pin diameter ensures secure mounting. Additionally, a router bit diameter of 24 mm facilitates easy installation.

The Architectural Door Hinge by Hafele is an excellent choice for enhancing the security and aesthetics of your door systems. Its durable construction and elegant design make it suitable for a wide range of architectural projects.
