Architectural Door Hinges

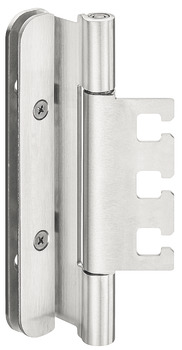

Architectural door hinge, Startec DXH 3160/16 FD - 924.25.250

HAFELE

Architectural door hinge, Startec DXH 3160/16 FD - 924.25.250 by Hafele — A reliable and long-lasting hinge solution for your doors.

Properties

Product Code: 924.25.250
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): No Information
Volume (cm³): 1.6

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.25.250_Safety notes
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

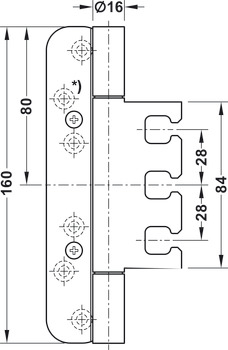

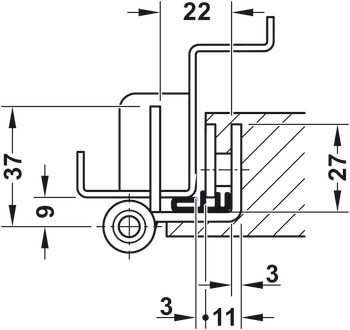

The Architectural door hinge, Startec DXH 3160/16 FD - 924.25.250 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge is an excellent choice for both aesthetics and durability. With a knuckle diameter of 16 mm and a flange thickness of 3 mm, it offers a robust structure. Additionally, its 12 mm radius facilitates easy door installation.

This hinge is suitable for wooden, steel, or aluminum frames, specifically designed for rebated architectural doors. It can support a maximum door weight of 160 kg with two hinges. The knuckle length of 160 mm and pin diameter of 6.50 mm ensure secure usage. The 24 mm router bit diameter allows for easy installation. With maintenance-free polymer friction bearings, it delivers long-lasting performance.

This hinge stands out with its reliability and long-lasting design. It provides the best solution for your doors, enhancing their functionality.
