Architectural door hinge, Simonswerk VN 7939/120 - 924.12.603

HAFELE

Architectural door hinge, Simonswerk VN 7939/120 - 924.12.603 by Hafele — a robust and stylish solution for your doors.

Properties

Product Code: 924.12.603
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
Long-lasting

Product Attribute Symbols

Dimensions

Length (cm): 12
Width (cm): 3.5
Height (cm): 12.8
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.12.603_Safety notes
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

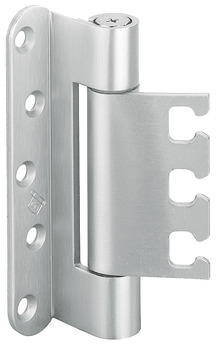

The Architectural door hinge, Simonswerk VN 7939/120 - 924.12.603 by Hafele represents a refined fusion of quality and functionality. With its rounded flange shape and matte finish, it offers an aesthetic appeal while ensuring durability through its stainless steel construction. This hinge is designed for both DIN left and DIN right-hand use, providing versatility for various door installations.

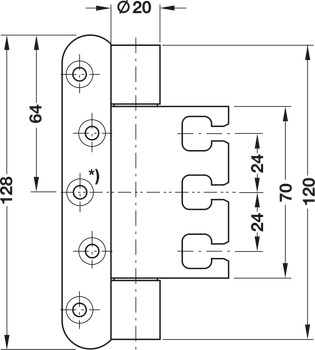

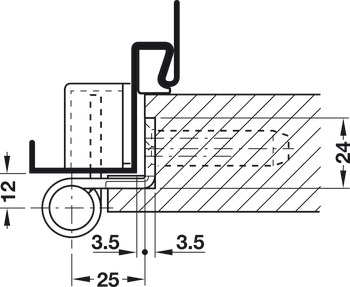

Capable of supporting door weights up to 120 kg, this hinge features a knuckle diameter of 20 mm and a knuckle length of 120 mm, enhancing its strength and reliability. Additionally, a pin diameter of 10 mm ensures secure installation, while a flange thickness of 3.5 mm and flange height of 128 mm / 70 mm accommodate various door types.

This door hinge features a maintenance-free journal thrust bearing type, ensuring long-lasting performance. It is certified in compliance with EN 1935:2002 standards. For doors under extra load, a separate carrying pin should be ordered. It can be easily mounted using the Simonswerk routing jig type 5 250564 5.

The Architectural door hinge, Simonswerk VN 7939/120 is an ideal choice for those seeking a combination of aesthetics and durability. It ensures secure and stylish operation for your doors.
