Architectural Door Hinges

Architectural door hinge, Startec DHX 2160/18 FD - 924.15.603

HAFELE

Architectural door hinge, Startec DHX 2160/18 FD - 924.15.603 by Hafele — a robust and stylish solution for your doors.

Properties

Product Code: 924.15.603
Category: Architectural Door Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 1.8

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.15.603_Safety notes
924.15.603_Constancy of performance certificate - DE
ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

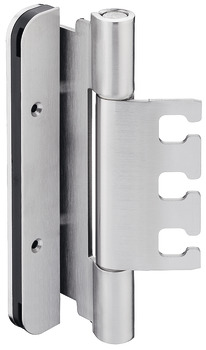

The Architectural door hinge, Startec DHX 2160/18 FD - 924.15.603 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, featuring a groove for continuous wing seal. The rounded flange shape and 18 mm knuckle diameter provide a reliable support for door installations.

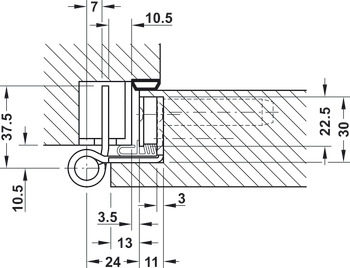

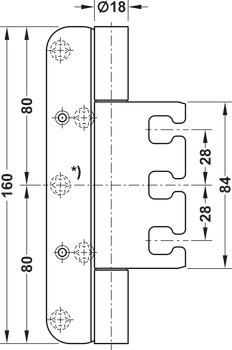

With a flange thickness of 3 mm and a height of 160 mm / 84 mm, it ensures a secure fit for doors. The hinge is capable of supporting door weights up to 200 kg, making it suitable for heavy-duty applications. The 160 mm knuckle length and 10 mm pin diameter enhance its durability, while the 24 mm router bit diameter allows for easy installation. The maintenance-free journal thrust bearing type ensures long-lasting performance, and the integrated security pin adds an extra layer of safety. Certified in compliance with EN 1935:2002, this hinge meets high standards of quality.

This hinge by Hafele offers a reliable and stylish solution for your doors, standing out with its durability and functionality.
