Architectural door hinge, Startec DHX 1160 - 924.24.803

HAFELE

Architectural door hinge, Startec DHX 1160 - 924.24.803 by Hafele — This hinge ensures smooth operation of your doors while adding an elegant touch.

Properties

Product Code: 924.24.803
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_ENG
Güvenlik Notları--Security Notes
924.24.803_Safety notes
ISO_9001_TR
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

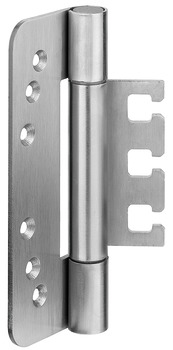

The Architectural door hinge, Startec DHX 1160 - 924.24.803 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and is made from stainless steel, making it both durable and visually appealing. It is compatible with wooden, steel, or aluminum frames, making it ideal for a variety of applications. The hinge can support door weights of up to 160 kg, making it a robust choice for heavy doors.

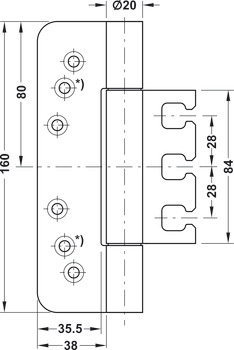

Designed with a knuckle diameter of 20 mm and a knuckle length of 160 mm, it provides a solid grip during installation. The flange thickness of 3 mm and a radius of 12 mm ensure a secure fit. Additionally, the 10 mm pin diameter and 24 mm router bit diameter facilitate an easy installation process. With a maintenance-free polymer friction bearing, this hinge is built to last. It is certified in compliance with EN 1935:2002 standards and boasts a durability grade of 4|7|7|1|1|4|1|14.

This product not only enhances the functionality of your doors but also adds an elegant touch. It is a reliable choice backed by Hafele's quality.
