Architectural door hinge, Simonswerk VX 7939/160 FD Planum - 924.01.244

HAFELE

Architectural door hinge, Simonswerk VX 7939/160 FD Planum - 924.01.244 by Hafele — a reliable and aesthetic solution for door installations.

Properties

Product Code: 924.01.244
Category: Architectural Door Hinges

Material Properties

Used Material:
Steel
Durability:
High

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 3
Height (cm): 16
Volume (cm³): 1.5

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
924.01.244_Safety notes
ISO_9001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

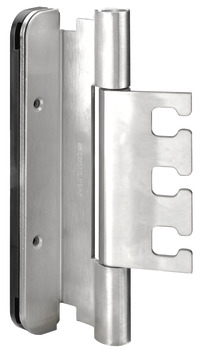

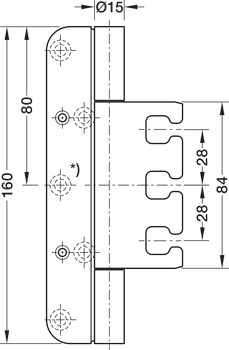

The Architectural door hinge, Simonswerk VX 7939/160 FD Planum - 924.01.244 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange design and a 15 mm knuckle diameter, ensuring both durability and aesthetic appeal. With a flange thickness of 3 mm and a height of 160 mm, it provides ease of installation, while a 12 mm radius adds to its elegant profile.

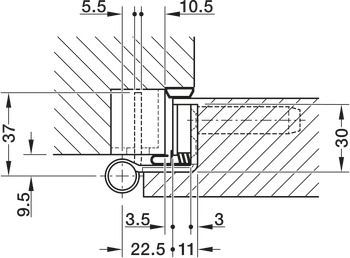

Constructed from robust steel, this hinge is suitable for wooden, steel, or aluminum frames. It can support door weights of up to 160 kg, delivering reliable performance. The 160 mm knuckle length and 3.50 mm routing depth facilitate straightforward installation, and it works seamlessly with a 24 mm router bit.

This hinge by Hafele stands out for its blend of aesthetics and durability, making it an excellent choice for reliable door installations.
