Architectural Door Hinges

Architectural door hinge, Simonswerk VX 7939/160 FD - 924.01.480

HAFELE

Architectural door hinge, Simonswerk VX 7939/160 FD - 924.01.480 by Hafele — Ensures reliable and smooth operation for your doors.

Properties

Product Code: 924.01.480
Category: Architectural Door Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 8
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
924.01.480_Safety notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

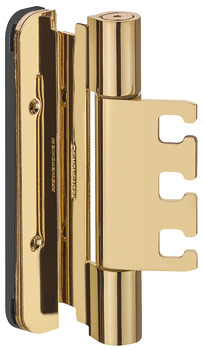

The Architectural door hinge, Simonswerk VX 7939/160 FD - 924.01.480 by Hafele represents a refined fusion of quality and functionality. With a polished brass plated finish, it combines elegance with durability. Capable of supporting door weights up to 200 kg, it is ideal for heavy-duty applications.

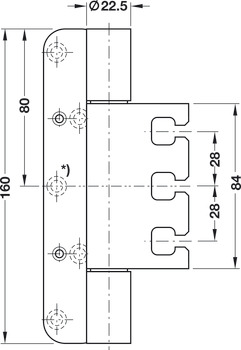

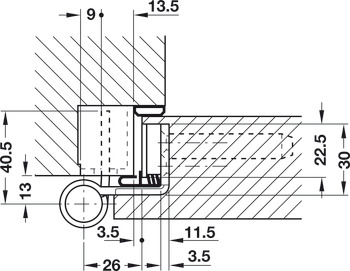

This hinge is designed for both DIN left and right-hand use and features a groove for continuous wing seal. Its knuckle diameter of 22.50 mm and knuckle length of 160 mm ensure a sturdy construction. With a flange thickness of 3.50 mm and a radius of 12 mm, it facilitates easy installation. The maintenance-free journal thrust bearing type provides long-lasting performance.

This hinge stands out with its robust construction and elegant design, making it a perfect choice for enhancing your door's functionality.
