Architectural Door Hinges

Architectural door hinge, Simonswerk VX 7939/160 FD - 924.01.471

HAFELE

Architectural door hinge, Simonswerk VX 7939/160 FD - 924.01.471 by Hafele — A secure and durable hinge solution for doors.

Properties

Product Code: 924.01.471
Category: Architectural Door Hinges

Material Properties

Used Material:
Steel
Durability:
Long-lasting, maintenance-free

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 3.5
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_9001_ENG
924.01.471_Safety notes
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

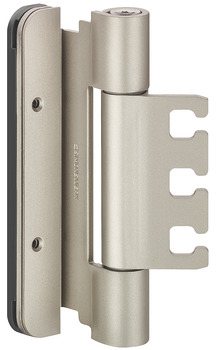

The Architectural door hinge, Simonswerk VX 7939/160 FD - 924.01.471 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for wooden, steel, or aluminum frames, making it ideal for soundproof doors. Made from high-quality steel, it ensures long-lasting durability and performance.

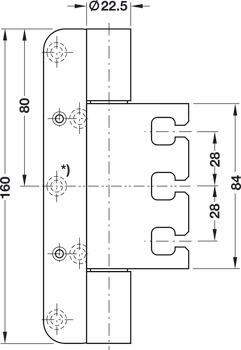

This hinge is suitable for DIN left and right-hand use. With a knuckle diameter of 22.50 mm and a length of 160 mm, it can support door weights up to 200 kg with two hinges. The 3.50 mm flange thickness and 12 mm radius facilitate easy installation. Additionally, it features a maintenance-free bearing type for extended performance.

This hinge by Hafele not only ensures secure door operation but also contributes to sound insulation. Its high-quality material and durable design make it a reliable choice for years to come.
