Architectural Door Hinges

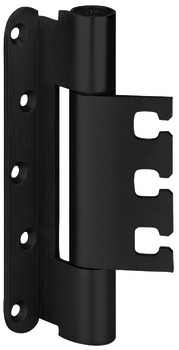

Architectural door hinge, Simonswerk VX 7939 - 924.01.230

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Architectural door hinge, Simonswerk VX 7939 - 924.01.230 by Hafele — Ensures secure and smooth door operation.

Properties

Product Code: 924.01.230
Category: Architectural Door Hinges

Material Properties

Used Material:
Steel
Durability:
Corrosion resistance 0/1/4: 0 = steel, polished brass plated/matt nickel plated, 1 = steel, chrome plated matt, 4 = satin stainless steel.

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 3.5
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_ENG
924.01.230_Safety notes
ISO_27001_TR
ISO_9001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Architectural door hinge, Simonswerk VX 7939 - 924.01.230 by Hafele represents a refined fusion of quality and functionality. This hinge is designed for both DIN left and DIN right-hand use, featuring a rounded flange shape that provides an aesthetic appeal. Made from durable steel, it can support door weights of up to 200 kg, making it a reliable choice for heavy doors.

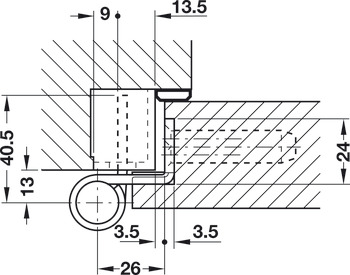

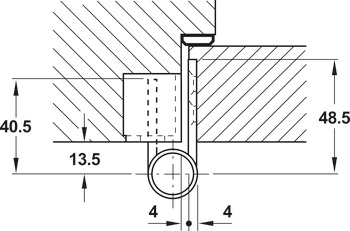

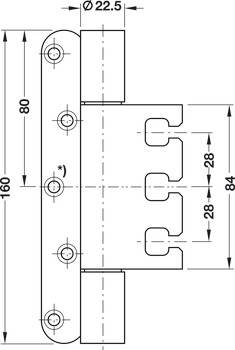

Equipped with a knuckle diameter of 22.50 mm and a knuckle length of 160 mm, this hinge ensures a secure connection between the door and the frame. The flange thickness of 3.50 mm and a radius of 12 mm contribute to its robust construction, while the maintenance-free journal thrust bearing enhances its longevity and ease of use.

This hinge is certified in compliance with EN 1935:2002, ensuring its reliability and performance. With corrosion resistance rated at 0/1/4, it is suitable for various environments. Hafele's product is an ideal solution for those seeking reliable performance in architectural projects.
