Architectural Door Hinges

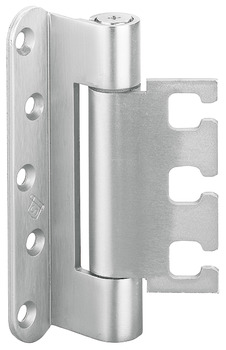

Architectural door hinge, Simonswerk VX 7939 - 924.00.771

HAFELE

Architectural door hinge, Simonswerk VX 7939 - 924.00.771 by Hafele — Ensures secure and smooth operation of your doors.

Properties

Product Code: 924.00.771
Category: Architectural Door Hinges

Material Properties

Used Material:
Steel
Durability:
High durability

Product Attribute Symbols

Dimensions

Length (cm): 12
Width (cm): 3.5
Height (cm): 12.8
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.00.771_Safety notes
ISO_9001_TR
ISO_9001_ENG
ISO_27001_TR
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

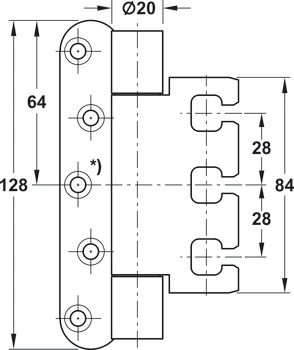

The Architectural door hinge, Simonswerk VX 7939 - 924.00.771 by Hafele represents a refined fusion of quality and functionality. This hinge is designed to meet the needs of both aesthetic and durability seekers. With a knuckle diameter of 20 mm, it has a maximum door weight capacity of 120 kg, making it suitable for various applications. The flange shape is rounded, offering both visual appeal and structural integrity with height options of 128 mm and 84 mm. The flange thickness of 3.50 mm ensures a secure installation.

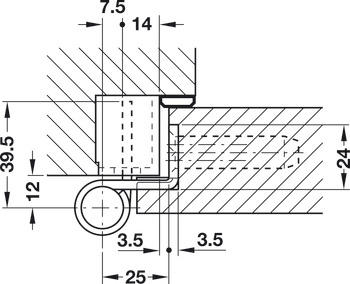

This hinge is designed for DIN left and DIN right hand use, making it versatile for any door system. Its 12 mm radius adds to its aesthetic design, while the 10 mm pin diameter and 24 mm router bit diameter facilitate easy installation. Featuring a journal thrust bearing type, it requires no maintenance, ensuring long-lasting performance.

This hinge by Hafele not only ensures the longevity of your doors but also provides an elegant appearance. It is the perfect choice for those seeking quality and durability.
