Architectural door hinge, Simonswerk VX 7749 - 924.03.403

HAFELE

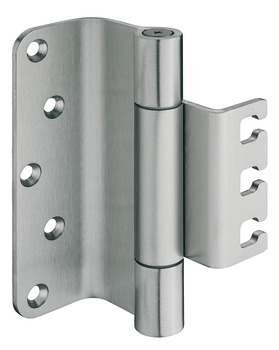

Architectural door hinge, Simonswerk VX 7749 - 924.03.403 by Hafele — A high-quality hinge ensuring smooth door operation.

Properties

Product Code: 924.03.403
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_ENG
ISO_9001_TR
924.03.403_Safety notes
ISO_27001_ENG
Güvenlik Notları--Security Notes
ISO_27001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Architectural door hinge, Simonswerk VX 7749 - 924.03.403 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge combines durability with an elegant design. Its rounded flange shape and matte finish provide a modern aesthetic while ensuring robust performance.

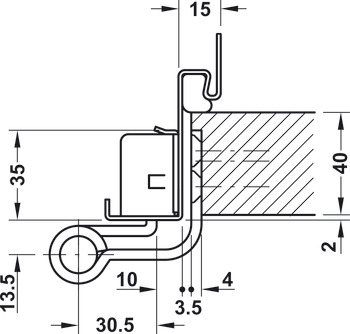

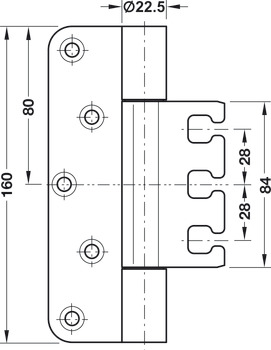

This hinge can support door weights up to 100 kg, making it ideal for heavy-duty applications. With a knuckle length of 160 mm and a knuckle diameter of 22.50 mm, it guarantees smooth operation. The flange thickness is 4 mm, and the flange height measures 160 mm / 84 mm, allowing for versatile installation options. Additionally, the hinge features a 10 mm diameter pin and a 24 mm router bit for easy installation.

This product ensures smooth door operation while standing out with its durability and aesthetic appeal. A reliable choice for modern architectural needs.
