Architectural Door Hinges

Architectural door hinge, Simonswerk VX 7729/160 - 924.01.003

HAFELE

Architectural door hinge, Simonswerk VX 7729/160 - 924.01.003 by Hafele — A high-quality hinge designed for smooth door operation.

Properties

Product Code: 924.01.003
Category: Architectural Door Hinges

Material Properties

Used Material:
No Information
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.01.003_Safety notes
ISO_27001_TR
ISO_9001_ENG
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_TR

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

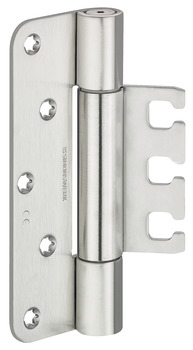

The Architectural door hinge, Simonswerk VX 7729/160 - 924.01.003 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and is made from robust stainless steel. Capable of supporting door weights up to 200 kg, it is an ideal choice for wooden, steel, or aluminum frames.

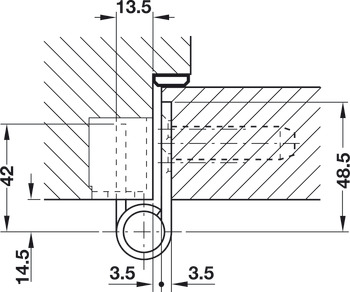

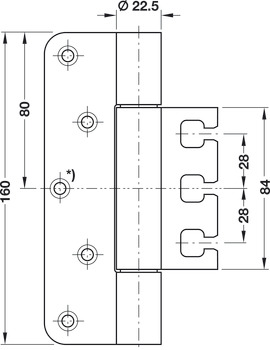

The hinge has a knuckle diameter of 22.50 mm and a knuckle length of 160 mm, providing solid support during door installation. With a flange thickness of 3.50 mm and a radius of 12 mm, it ensures durability and reliability. Its maintenance-free journal thrust bearing type enhances its longevity. Certified in compliance with EN 1935:2002, this hinge guarantees reliability and safety.

This product stands out for its robust construction and aesthetic design, making it an excellent choice for your doors.
