Architectural Door Hinges

Architectural door hinge, Simonswerk VX 7728 - 924.11.803

HAFELE

Architectural door hinge, Simonswerk VX 7728 - 924.11.803 by Hafele — A robust and aesthetic hinge solution for your doors.

Properties

Product Code: 924.11.803
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
Long-lasting

Product Attribute Symbols

Dimensions

Length (cm): 12
Width (cm): 3.5
Height (cm): 12
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_TR
ISO_27001_ENG
ISO_9001_TR
ISO_9001_ENG
924.11.803_Safety notes
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

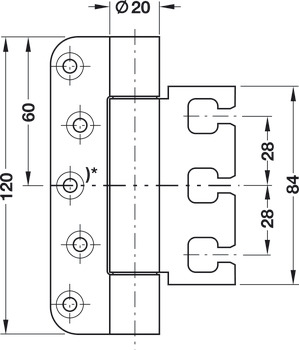

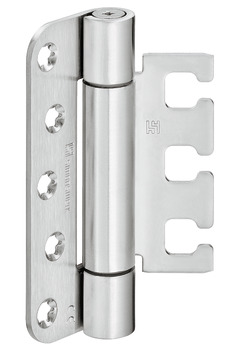

The Architectural door hinge, Simonswerk VX 7728 - 924.11.803 by Hafele represents a refined fusion of quality and functionality. This hinge features a rounded flange shape and a matte finish, providing an aesthetic appeal while being made of stainless steel for long-lasting use. It is designed for both DIN left and DIN right hand applications and boasts a knuckle diameter of 20 mm, ensuring a sturdy structure.

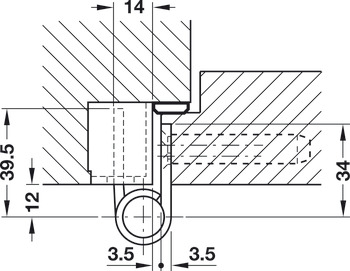

With a flange thickness of 3.5 mm and a flange height of 120 mm / 84 mm, this hinge allows for smooth door operation with a radius of 12 mm. It is suitable for rebated flush-fitted architectural doors made from wooden, steel, or aluminum frames. The maximum door weight supported by two hinges is 100 kg, making it an ideal choice for heavier doors.

This hinge by Hafele stands out with its reliability and aesthetic appeal, making it a top choice for those seeking quality and durability in their door hardware.
