Architectural Door Hinges

Architectural door hinge, Simonswerk VX 7728 - 924.11.703

HAFELE

Download Product ID Card

Drawing Files Technical Documents

Architectural door hinge, Simonswerk VX 7728 - 924.11.703 by Hafele — A reliable hinge solution for your doors.

Properties

Product Code: 924.11.703
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 9.5
Width (cm): No Information
Height (cm): 9.5
Volume (cm³): 2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_27001_TR
924.11.703_Safety notes
ISO_9001_ENG
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

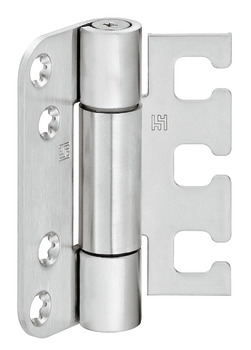

The Architectural door hinge, Simonswerk VX 7728 - 924.11.703 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge offers an excellent choice in terms of both aesthetics and durability. With its rounded flange shape and matte finish, it provides a modern look that fits various door designs.

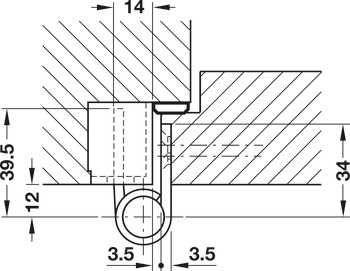

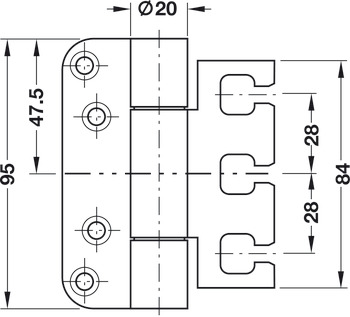

This hinge is designed for both DIN left and DIN right applications. With a knuckle diameter of 20 mm and a flange thickness of 3.50 mm, it ensures solid mounting. The flange heights of 95 mm and 84 mm allow for perfect compatibility with door frames. The 12 mm radius ensures smooth operation when opening and closing the door. It can support up to 80 kg of door weight for two hinges, making it highly functional.

The Architectural door hinge, Simonswerk VX 7728, by Hafele offers a reliable solution for your doors. With its durability and aesthetic design, it is an excellent choice for both functional and visual needs.
