Architectural Door Hinges

Architectural door hinge, Simonswerk VN 7939/160 - 924.14.503

HAFELE

Architectural door hinge, Simonswerk VN 7939/160 - 924.14.503 by Hafele — A robust and stylish solution for your doors.

Properties

Product Code: 924.14.503
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_27001_ENG
ISO_9001_TR
ISO_27001_TR
ISO_9001_ENG
924.14.503_Safety notes
Güvenlik Notları--Security Notes

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

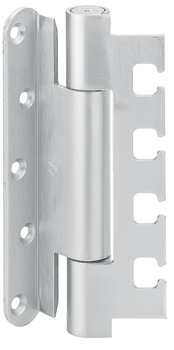

The Architectural door hinge, Simonswerk VN 7939/160 - 924.14.503 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, this hinge features a rounded flange shape and a matte finish, making it suitable for modern architectural designs. Its durability and long-lasting performance are key highlights.

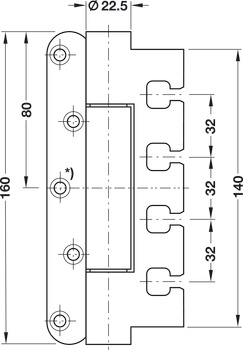

This hinge is designed for both DIN left and DIN right hand use, supporting a maximum door weight of 160 kg with two hinges. With a flange thickness of 3.5 mm and a knuckle diameter of 22.5 mm, it provides a solid construction. The 160 mm flange height and 12 mm radius facilitate easy installation. Additionally, its maintenance-free journal thrust bearing ensures long-term reliability.

The Architectural door hinge stands out for its unique strengths, making it a preferred choice for your door solutions.
