Architectural Door Hinges

Architectural door hinge, Simonswerk VN 3748/160 - 924.13.703

HAFELE

Architectural door hinge, Simonswerk VN 3748/160 - 924.13.703 by Hafele — Designed to enhance the security and functionality of your doors.

Properties

Product Code: 924.13.703
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
Long-lasting, maintenance-free

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): 3.5
Height (cm): 16
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

Güvenlik Notları--Security Notes
ISO_9001_TR
ISO_27001_TR
ISO_27001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

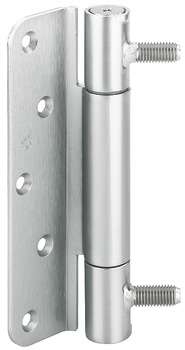

The Architectural door hinge, Simonswerk VN 3748/160 - 924.13.703 by Hafele represents a refined fusion of quality and functionality. Made from stainless steel, it offers both aesthetic appeal and durability. The rounded flange shape and matte finish make it compatible with modern architectural designs. Capable of supporting door weights up to 160 kg, this hinge showcases its robust structure and reliability.

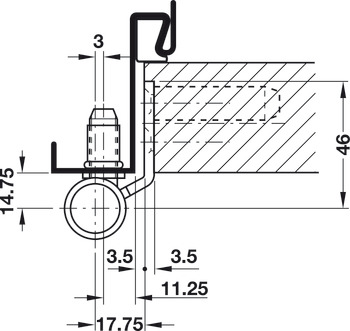

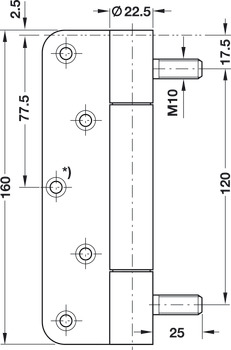

This door hinge requires no maintenance, providing long-lasting performance. The bearing type facilitates smooth rotation, reducing wear and tear on the door. With a knuckle diameter of 22.50 mm and a flange thickness of 35 mm, it ensures a secure installation and an aesthetically pleasing appearance.

This door hinge features a pin diameter of 10 mm and a router bit diameter of 24 mm for easy installation. Additionally, the maintenance-free bearing type ensures long-lasting use. Certified in compliance with EN 1935:2002, this product is recommended to order a separate carrying pin for doors under extra load. Hafele's offering provides a reliable solution for your architectural designs.
