Architectural Door Hinges

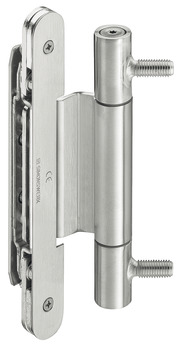

Architectural door hinge, Simonswerk VN 3747/160 Compact - 924.18.403

HAFELE

Architectural door hinge, Simonswerk VN 3747/160 Compact - 924.18.403 by Hafele — A reliable and long-lasting hinge solution for your doors.

Properties

Product Code: 924.18.403
Category: Architectural Door Hinges

Material Properties

Used Material:
Stainless steel
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): 16
Width (cm): No Information
Height (cm): 19.6
Volume (cm³): 2.2

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_TR
ISO_27001_ENG
924.18.403_Safety notes
Güvenlik Notları--Security Notes
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

The Architectural door hinge, Simonswerk VN 3747/160 Compact - 924.18.403 by Hafele represents a refined fusion of quality and functionality. This hinge is specifically designed for modern architectural applications and is made from stainless steel. Its user-friendly 3D adjustment mechanism provides significant ease during door installation. Additionally, the rounded flange shape and matte finish offer an aesthetic appeal.

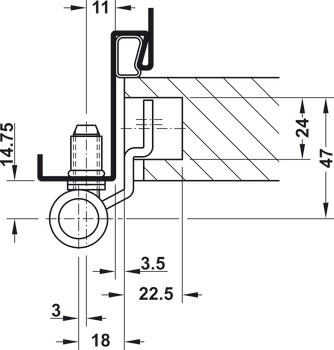

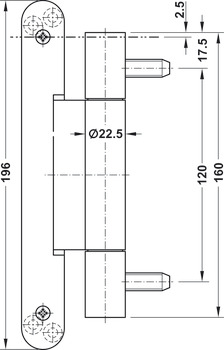

Standing out for its performance and durability, this hinge can support door weights of up to 160 kg. With a knuckle diameter of 22.50 mm, it ensures a robust connection. The flange thickness of 3.50 mm and flange height of 196 mm provide a secure hold during installation. Furthermore, the 10 mm pin diameter and 24 mm router bit diameter work in harmony. The maintenance-free journal thrust bearing design prevents performance loss over extended use.

This hinge is ideal for those seeking high security and aesthetic appeal in their doors. The Architectural Door Hinge by Hafele is a product that should be chosen for its durability and long-lasting performance.
