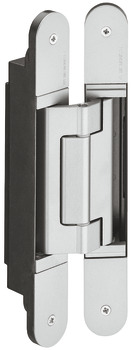

Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.423

HAFELE

Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.423 by Hafele — A reliable and aesthetic hinge solution for your doors.

Properties

Product Code: 924.17.423
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information
Width (cm): 3.2
Height (cm): 24
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

924.17.423_Safety notes
ISO_9001_TR
Güvenlik Notları--Security Notes
ISO_27001_ENG
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

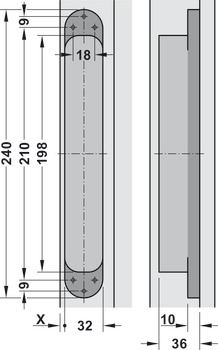

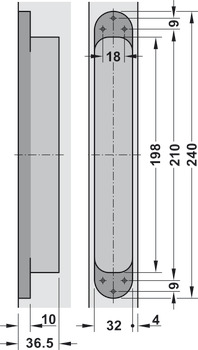

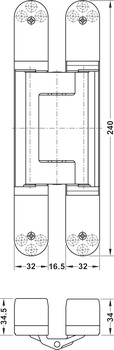

The Door hinge, Simonswerk TECTUS TE 640 3D, for flush doors up to 200 kg - 924.17.423 by Hafele represents a refined fusion of quality and functionality. This hinge is designed to provide both aesthetic appeal and durability. Made from steel, aluminum, and zinc alloy, it ensures long-lasting performance. With a flange height of 240 mm and a flange width of 32 mm, this hinge allows for a door opening angle of up to 180 degrees, facilitating ease of use.

The hinge is compatible with wooden, steel, or aluminum frames, making it an ideal choice for heavy doors, supporting a maximum door weight of 200 kg. Additionally, it offers the flexibility of DIN left and DIN right mounting, making it suitable for various door configurations.

This hinge provides adjustment facilities including side adjustment ±3 mm, height adjustment ±3 mm, and closing pressure adjustment ±1 mm, allowing for easy alignment post-installation. It is certified in compliance with EN 1935:2002, ensuring high standards of quality with a grade of 4|7|7|1|1|4|1|14. The hinge is an excellent choice for those seeking reliability and functionality in their door hardware.
