Door hinge, Simonswerk TECTUS TE 541 3D FVZ - 924.19.019

HAFELE

Door hinge, Simonswerk TECTUS TE 541 3D FVZ - 924.19.019 by Hafele — Ensures secure and smooth operation of your doors.

Properties

Product Code: 924.19.019
Category: Concealed Hinges

Material Properties

Used Material:
Steel, Aluminium, Zinc alloy
Durability:
No Information

Product Attribute Symbols

Dimensions

Length (cm): No Information

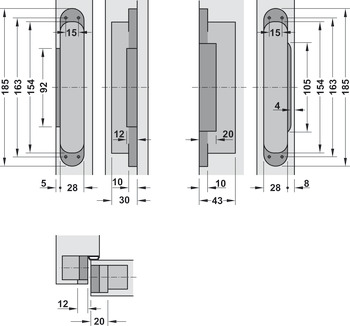

Width (cm): 2.8
Height (cm): 18.5
Volume (cm³): No Information

Assembly and Installation Instructions

Assembly: Please refer to the installation guide.
Assembly Tools: Please refer to the installation guide.
Assembly Instructions: Please refer to the installation guide.
Professional Help: Authorized service support can be obtained if necessary.

Care and Cleaning Instructions

Cleaning Instructions: Wipe with a damp soft cloth, do not use abrasive cleaners.
Care Instructions: Check regularly to ensure no mechanical damage has occurred.
Recommended Cleaning Materials: Soft cloth or sponge.

Safety and Quality Documents

ISO_9001_TR
ISO_27001_ENG
924.19.019_Safety notes
Güvenlik Notları--Security Notes
ISO_27001_TR
ISO_9001_ENG

Images

Pricing and Payment Conditions

Pricing Policy: Please contact the sales team.
Payment Options: Credit card, bank transfer and cash on delivery options are available.
Delivery Period: Please contact the sales team.
Minimum Order Quantity: Please contact the sales team.

Warranty and Servicing Information

Warranty Period: 2 years
Warranty Coverage: Covered against manufacturing defects.
Service Contact : Please contact the sales team.

References

No image

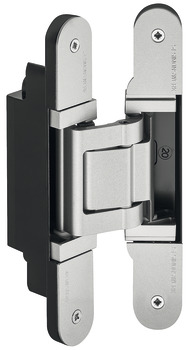

The Door hinge, Simonswerk TECTUS TE 541 3D FVZ - 924.19.019 by Hafele represents a refined fusion of quality and functionality. With its rounded flange shape and 28 mm flange width, it boasts a modern design. Made from steel, aluminum, and zinc alloy, it provides both durability and aesthetic appeal.

This hinge can support door weights of up to 100 kg and offers an opening angle of 180 degrees, making it versatile for various applications. It is suitable for doors with a thickness of 40 mm or more and is designed for both DIN left and DIN right-hand use. It requires a 24 mm router bit and comes with a 30 mm thrust ring. The adjustment features include side adjustment of ±3 mm, height adjustment of ±3 mm, and closing pressure adjustment of ±1 mm.

The Simonswerk TECTUS TE 541 3D hinge enhances the security and aesthetics of your doors, making it an excellent choice for any installation.
